LP2975AIMMX-5.0/NOPB - Texas Instruments

Description: LDO Voltage Controllers

Download LP2975AIMMX-5.0/NOPB Model

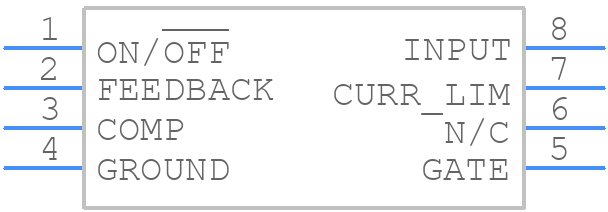

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LP2975AIMMX-5.0/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK  (S-PDSO-G8)
click to zoom
3D Models
LP2975AIMMX-5.0/NOPB - Texas Instruments  - 3D model - Small Outline Packages - DGK  (S-PDSO-G8)
click to zoom

LP2975AIMMX-5.0/NOPB Details

  • Manufacturer Part Number:

    LP2975AIMMX-5.0/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, MINI, SOP-8

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    23 V

  • Output Voltage-Min:

    1.24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LP2975AIMMX-5.0/NOPB Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LP2975AIMMX-5.0/NOPB is 15V. Exceeding this voltage can cause damage to the device.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the input voltage should be well-regulated and free of noise.
  • The maximum output current that the LP2975AIMMX-5.0/NOPB can deliver is 500mA. Exceeding this current can cause the device to overheat and potentially fail.
  • The output voltage of the LP2975AIMMX-5.0/NOPB can be adjusted by using a resistive divider network between the output pin and the adjust pin. The output voltage can be calculated using the formula: Vout = 5V * (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
  • The thermal shutdown temperature of the LP2975AIMMX-5.0/NOPB is 150°C. If the device temperature exceeds this value, it will shut down to prevent damage.
