LP2986IMX-5.0 - Texas Instruments

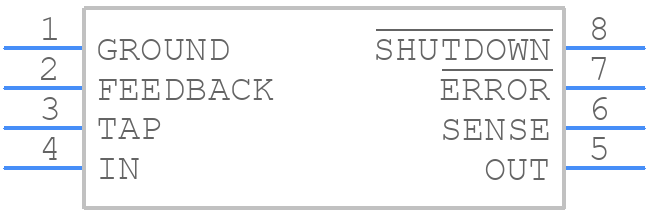

LP2986IMX-5.0 Details

• Manufacturer Part Number:

  LP2986IMX-5.0

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1997-03-01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Adjustability:

  FIXED/ADJUSTABLE

• Dropout Voltage1-Max:

  0.35 V

• Dropout Voltage1-Nom:

  0.18 V

• Input Voltage Absolute-Max:

  16 V

• Input Voltage-Max:

  16 V

• Input Voltage-Min:

  2.1 V

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e0

• Length:

  4.9 mm

• Line Regulation-Max:

  0.016%

• Line Regulation-Max (%/V):

  0.032

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.2 A

• Output Voltage1-Max:

  5 V

• Output Voltage1-Min:

  1.23 V

• Output Voltage1-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  235

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.75 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  20

• Voltage Tolerance-Max:

  2.8%

• Width:

  3.9 mm
