The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output voltage regulation.
To ensure stability, it's essential to follow the recommended PCB layout guidelines, use a sufficient output capacitor value, and add a small ceramic capacitor (e.g., 10nF) between the VOUT and GND pins. Additionally, avoid using long, thin traces and keep the input and output capacitors close to the device.
The LP2995MR/NOPB can deliver up to 500mA of output current, but this depends on the input voltage, output voltage, and ambient temperature. It's essential to check the device's thermal performance and power dissipation to ensure reliable operation.
The LP2995MR/NOPB is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's crucial to consider the device's thermal characteristics, power dissipation, and cooling requirements when operating in high-temperature environments.
The LP2995MR/NOPB has a built-in overcurrent protection feature that limits the output current to approximately 1.5A. However, if additional protection is required, an external current sense resistor and a comparator or a dedicated overcurrent protection IC can be used to detect and respond to overcurrent conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP2995MR/NOPB Overview

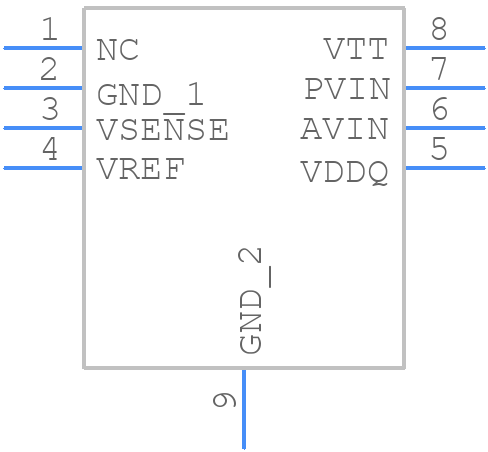

Use the download button to access the LP2995MR/NOPB schematic symbol, PCB footprint, and 3D model.
