LP2996AMRE/NOPB - Texas Instruments

Description: 1.5A DDR termination regulator with shutdown pin for DDR2/3/3L

Download LP2996AMRE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

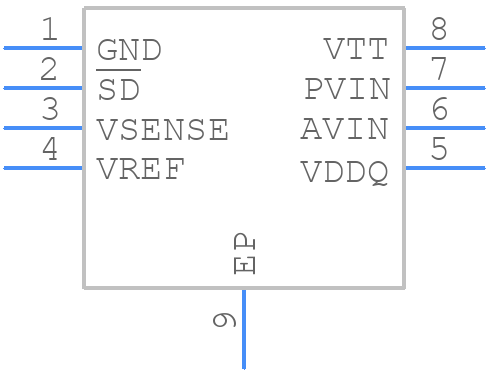

Symbol
LP2996AMRE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LP2996AMRE/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - LP2996AMRE/NOPB**
click to zoom
3D Models
LP2996AMRE/NOPB - Texas Instruments - 3D model - Small Outline Packages - LP2996AMRE/NOPB**
click to zoom

LP2996AMRE/NOPB Details

  • Manufacturer Part Number:

    LP2996AMRE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.35 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Min:

    0.677 V

  • Package Body Material:

    PLASTIC

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LP2996AMRE/NOPB Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 1uF to 10uF, with a voltage rating of at least 6.3V. A larger capacitor can be used to improve noise rejection and transient response.
  • To ensure stability, use a minimum output capacitor of 2.2uF with an ESR of 0.1Ω to 10Ω. Additionally, place the output capacitor close to the regulator and use a low-ESR capacitor to minimize oscillations.
  • The maximum dropout voltage is 1.2V, which means the input voltage must be at least 1.2V higher than the output voltage to maintain regulation.
  • Yes, the LP2996AMRE/NOPB is rated for operation up to 125°C. However, the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • Power dissipation (PD) can be calculated using the formula: PD = (VIN - VOUT) x IOUT + (VIN x IGND). Where VIN is the input voltage, VOUT is the output voltage, IOUT is the output current, and IGND is the ground current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LP2996AMRE/NOPB Overview

Use the download button to access the LP2996AMRE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP299, or try a keyword search, such as Other Regulators
