LP2996AMRX/NOPB - Texas Instruments

Description: 1.5A DDR termination regulator with shutdown pin for DDR2/3/3L

Download LP2996AMRX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

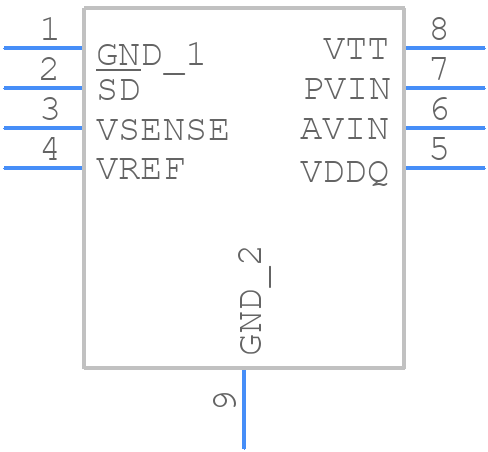

LP2996AMRX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LP2996AMRX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDA0008A
click to zoom
3D Models
LP2996AMRX/NOPB - Texas Instruments - 3D model - Small Outline Packages - DDA0008A
click to zoom

LP2996AMRX/NOPB Details

  • Manufacturer Part Number:

    LP2996AMRX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.35 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Min:

    0.677 V

  • Package Body Material:

    PLASTIC

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LP2996AMRX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The layout should also minimize thermal resistance and ensure good airflow around the device.
  • To ensure stability and prevent oscillations in the output voltage, it's essential to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, ensure that the output capacitor has a low equivalent series resistance (ESR) and a high ripple current rating.
  • The maximum input voltage that can be applied to the LP2996AMRX/NOPB is 15V. Exceeding this voltage can cause permanent damage to the device.
  • The output voltage accuracy and tolerance can be calculated using the formula: Output Voltage Tolerance = (Output Voltage Nominal Value x (1 + (Temperature Coefficient x (Temperature - 25°C))) x (1 + (Line Regulation x (Input Voltage - Nominal Input Voltage))).
  • The recommended input capacitor value is 1uF to 10uF, with a low ESR and a high ripple current rating. A ceramic or film capacitor is recommended due to their low ESR and high reliability.
