LP2996MX - Texas Instruments

Description: Power Management Specialized - PMIC SOIC-8_150mil RoHS

Download LP2996MX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

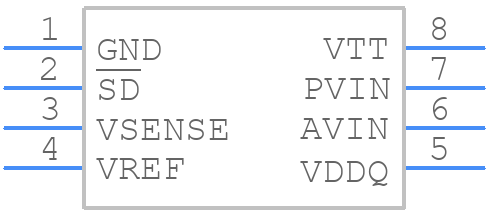

LP2996MX - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LP2996MX - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - (D0008A-H=1.75
click to zoom
3D Models
LP2996MX - Texas Instruments - 3D model - Small Outline Packages - (D0008A-H=1.75
click to zoom

LP2996MX Details

  • Manufacturer Part Number:

    LP2996MX

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    235

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    3.9 mm

LP2996MX Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 1uF to 10uF, with a voltage rating of at least 6.3V. A larger capacitor can be used to improve noise rejection and transient response.
  • To ensure stability, use a minimum output capacitor of 2.2uF with an ESR (Equivalent Series Resistance) of 0.1Ω to 10Ω. Additionally, place the output capacitor close to the regulator and use a low-ESR capacitor to minimize oscillations.
  • The maximum dropout voltage for LP2996MX is 1.2V. This means that the input voltage must be at least 1.2V higher than the output voltage to ensure proper regulation.
  • Yes, LP2996MX is rated for operation up to 125°C. However, the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper thermal design and heat sinking to prevent overheating.
  • Power dissipation (PD) can be calculated using the formula: PD = (VIN - VOUT) x IOUT + (VIN x IGND). Where VIN is the input voltage, VOUT is the output voltage, IOUT is the output current, and IGND is the ground current.
