- Part Number LP2997MR
- Manufacturer Texas Instruments
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P600X168-9N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LP2997MR Details
-
Manufacturer Part Number:
LP2997MR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
LP2997MR Frequently Asked Questions (FAQs)
-
The maximum input voltage that can be applied to the LP2997MR is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent overheating.
-
To ensure stability, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, keep the input and output capacitors close to the device and use a solid ground plane to reduce noise and oscillations.
-
The minimum input voltage required for the LP2997MR to operate is 2.5V, but it's recommended to keep it above 3V for optimal performance.
-
The LP2997MR is rated for operation up to 125°C, but it's recommended to keep the junction temperature below 115°C for optimal performance and reliability. Make sure to provide adequate heat sinking and thermal management.
-
The output voltage of the LP2997MR can be calculated using the formula: Vout = 1.2V * (1 + R1/R2), where R1 and R2 are the resistors used in the feedback network.
Trust Checks
System Verified
LP2997MR Overview

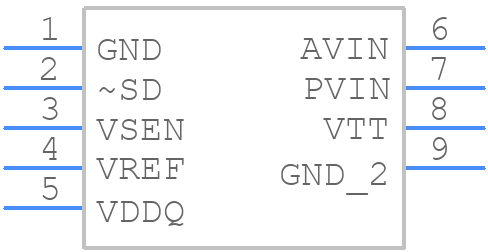

Use the download button to access the LP2997MR schematic symbol, PCB footprint, and 3D model.
