A good PCB layout for the LP2998QMRE/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from the analog signals.
To ensure the stability of the LP2998QMRE/NOPB output voltage, it's essential to use the recommended output capacitor value and type, and to ensure that the output capacitor is placed close to the device. Additionally, the input voltage should be stable and within the recommended range, and the device should be operated within its recommended operating conditions.
The LP2998QMRE/NOPB can handle input voltages up to 12V, but it's recommended to operate the device within the recommended input voltage range of 3.5V to 10V for optimal performance and reliability.
The LP2998QMRE/NOPB is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. It's essential to ensure that the device is operated within its recommended operating conditions and that the junction temperature is kept below 150°C.
To troubleshoot issues with the LP2998QMRE/NOPB, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within its recommended operating conditions and that the PCB layout is correct. Check for any signs of overheating, and ensure that the device is properly soldered and connected.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP2998QMRE/NOPB Overview

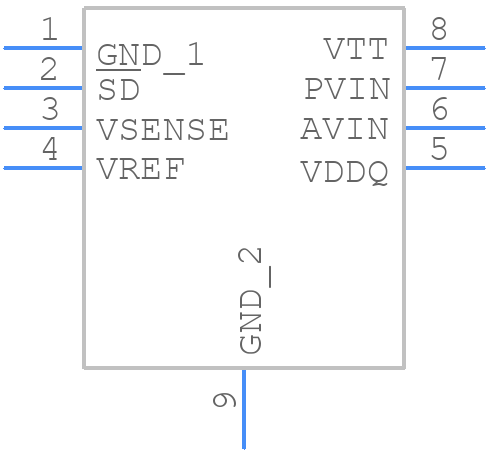

Use the download button to access the LP2998QMRE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP299,
or try a keyword search, such as Other Regulators
