LP3855ES-ADJ - Texas Instruments

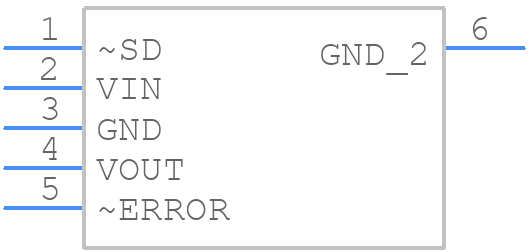

LP3855ES-ADJ Details

• Manufacturer Part Number:

  LP3855ES-ADJ

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  D2PAK

• Package Description:

  TO-263, 5 PIN

• Pin Count:

  4

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Max:

  0.42 V

• Dropout Voltage1-Nom:

  0.24 V

• JESD-30 Code:

  R-PSSO-G5

• JESD-609 Code:

  e0

• Length:

  10.16 mm

• Line Regulation-Max (%/V):

  0.0125

• Load Regulation-Max(%):

  0.12%

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  1.5 A

• Output Voltage1-Max:

  7 V

• Output Voltage1-Min:

  1.2 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TO-263

• Package Equivalence Code:

  SMSIP5H,.6,67TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  RAIL

• Peak Reflow Temperature (Cel):

  235

• Qualification Status:

  Not Qualified

• Regulator Type:

  ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  4.65 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.7 mm

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  8.635 mm
