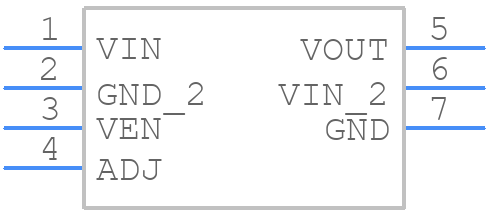

LP38692SD-ADJ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LP38692SD-ADJ - Texas Instruments PCB footprint - Other - Other - DFN300X300X80-7N
click to zoom
3D Models
LP38692SD-ADJ - Texas Instruments - 3D model - Other - DFN300X300X80-7N
click to zoom

LP38692SD-ADJ Details

  • Manufacturer Part Number:

    LP38692SD-ADJ

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    LLP-6

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    1.6 V

  • Dropout Voltage1-Nom:

    0.95 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.1

  • Load Regulation-Max(%):

    5%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    9 V

  • Output Voltage1-Min:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.13,38

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LP38692SD-ADJ Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output voltage regulation.
  • The output voltage of the LP38692SD-ADJ can be adjusted by connecting a resistor divider network between the output pin and the adjust pin. The output voltage is determined by the ratio of the resistors and the internal reference voltage (1.25V).
  • The maximum input voltage that the LP38692SD-ADJ can handle is 15V. Exceeding this voltage can cause damage to the device.
  • The LP38692SD-ADJ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation.
  • To ensure stability and prevent oscillations, it's recommended to use a minimum output capacitor value of 10uF, and to place the output capacitor close to the output pin. Additionally, the input capacitor value and ESR should be chosen carefully to prevent oscillations.
