A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 4-layer PCB with a solid ground plane and a thermal relief pattern can also help to dissipate heat efficiently.
To ensure reliable start-up and shutdown, it is recommended to use a soft-start circuit to limit the inrush current, and to add a delay between power-on and the enable signal. Additionally, a voltage supervisor can be used to ensure that the device is only enabled when the input voltage is within the recommended range.
To ensure EMI and EMC compliance, it is recommended to use a shielded inductor, to keep the switching node (SW) as short as possible, and to use a common-mode choke to reduce common-mode noise. Additionally, a good PCB layout with a solid ground plane and a Faraday shield can help to reduce radiated emissions.
To optimize the device for low standby power consumption, it is recommended to use a low-quiescent-current (Iq) mode, to disable unnecessary blocks, and to use a low-power oscillator. Additionally, using a low-dropout regulator (LDO) with a low quiescent current can also help to reduce standby power consumption.
The key considerations for thermal design and heat sinking include selecting a heat sink with a high thermal conductivity, ensuring good thermal interface material (TIM) between the device and the heat sink, and using a thermal relief pattern on the PCB to improve heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP3943ISQX/NOPB Overview

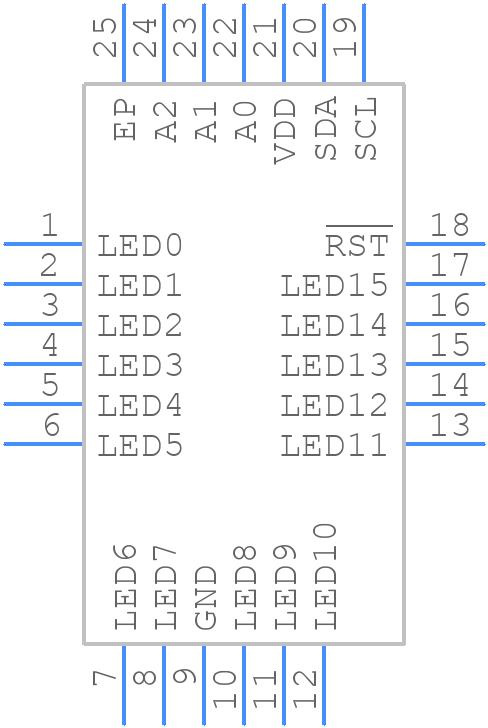

Use the download button to access the LP3943ISQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP394,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
