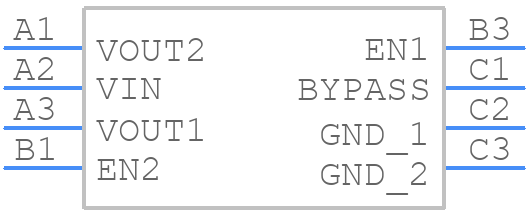

LP3986TL-2828/NOPB - Texas Instruments

LP3986TL-2828/NOPB Details

• Manufacturer Part Number:

  LP3986TL-2828/NOPB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  BGA

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.1 V

• Dropout Voltage1-Nom:

  0.06 V

• Dropout Voltage2-Max:

  0.1 V

• Input Voltage Absolute-Max:

  6.5 V

• Input Voltage-Max:

  6 V

• Input Voltage-Min:

  2.7 V

• JESD-30 Code:

  S-PBGA-B8

• JESD-609 Code:

  e1

• Length:

  1.56 mm

• Line Regulation-Max:

  0.0096%

• Load Regulation-Max:

  0.04172%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.3 A

• Output Current2-Max:

  0.15 A

• Output Voltage1-Max:

  2.884 V

• Output Voltage1-Min:

  2.716 V

• Output Voltage1-Nom:

  2.8 V

• Output Voltage2-Max:

  2.884 V

• Output Voltage2-Min:

  2.716 V

• Output Voltage2-Nom:

  2.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA8,3X3,20

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.675 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  3%

• Width:

  1.56 mm
