Texas Instruments provides a recommended PCB layout for the LP3996QSDX-1833/NOPB in the datasheet, but it's also recommended to follow general guidelines for thermal design, such as using a solid ground plane, placing thermal vias under the device, and keeping the device away from heat sources.
To ensure proper biasing during startup, make sure to follow the recommended startup sequence outlined in the datasheet, which includes applying the input voltage before the enable signal. Additionally, ensure that the input voltage is within the recommended range and that the device is properly decoupled.
The maximum output current of the LP3996QSDX-1833/NOPB is 1.5A, but it's recommended to derate the output current based on the ambient temperature and the device's thermal performance. Refer to the datasheet for more information on thermal derating.
The LP3996QSDX-1833/NOPB is rated for operation up to 125°C, but it's recommended to follow the recommended operating conditions and thermal design guidelines to ensure reliable operation. Additionally, consider using thermal management techniques such as heat sinks or thermal interfaces to reduce the device's junction temperature.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and enable signal to ensure they are within the recommended ranges. Also, verify that the device is properly decoupled and that the output capacitor is within the recommended range. If issues persist, refer to the datasheet for more troubleshooting guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP3996QSDX-1833/NOPB Overview

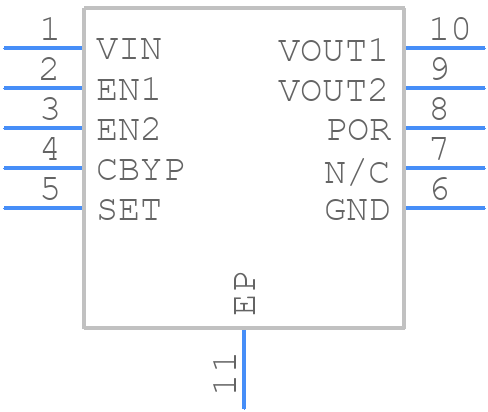

Use the download button to access the LP3996QSDX-1833/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP399,
or try a keyword search, such as Linear Regulator ICs
