A good PCB layout for the LP3996SD-2533/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from the analog signals.
To ensure the stability of the LP3996SD-2533/NOPB output voltage, it's essential to use the recommended output capacitor value and type, and to ensure that the output capacitor is placed close to the device. Additionally, the input voltage should be stable and within the recommended range, and the device should be operated within its recommended operating temperature range.
The LP3996SD-2533/NOPB can handle input voltages up to 15V, but it's recommended to operate the device within the recommended input voltage range of 3.5V to 12V for optimal performance and reliability.
The LP3996SD-2533/NOPB is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. It's essential to ensure that the device is operated within its recommended operating temperature range and that the junction temperature is kept below 150°C.
To troubleshoot issues with the LP3996SD-2533/NOPB, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within its recommended operating conditions, and check for any signs of overheating or physical damage. Use an oscilloscope to check for any oscillations or noise on the output, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP3996SD-2533/NOPB Overview

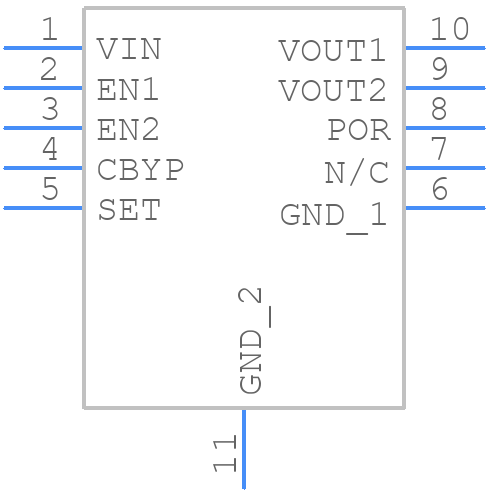

Use the download button to access the LP3996SD-2533/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP399,
or try a keyword search, such as Linear Regulator ICs
