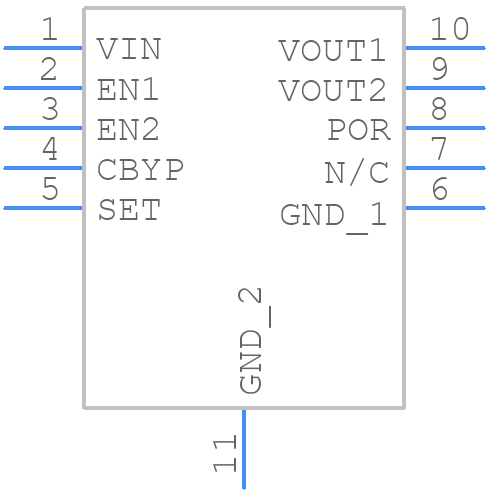

LP3996SD-3333 - Texas Instruments

LP3996SD-3333 Details

• Manufacturer Part Number:

  LP3996SD-3333

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SON

• Package Description:

  3 X 3 MM, LEAD FREE, LLP-10

• Pin Count:

  10

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.22 V

• Dropout Voltage1-Nom:

  0.21 V

• Dropout Voltage2-Max:

  0.55 V

• Input Voltage Absolute-Max:

  6.5 V

• Input Voltage-Max:

  6 V

• Input Voltage-Min:

  2 V

• JESD-30 Code:

  S-XDSO-N10

• JESD-609 Code:

  e0

• Length:

  3 mm

• Line Regulation-Max:

  0.0168%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  10

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.15 A

• Output Current2-Max:

  0.3 A

• Output Voltage1-Max:

  3.423 V

• Output Voltage1-Min:

  3.176 V

• Output Voltage1-Nom:

  3.3 V

• Output Voltage2-Max:

  3.423 V

• Output Voltage2-Min:

  3.176 V

• Output Voltage2-Nom:

  3.3 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC10,.11,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Voltage Tolerance-Max:

  3.75%

• Width:

  3 mm
