LP4EE1PBATB - E-Switch

Description: PUSHBUTTON, 100mA, 30VDC DPDT, On-On Through Hole

Download LP4EE1PBATB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

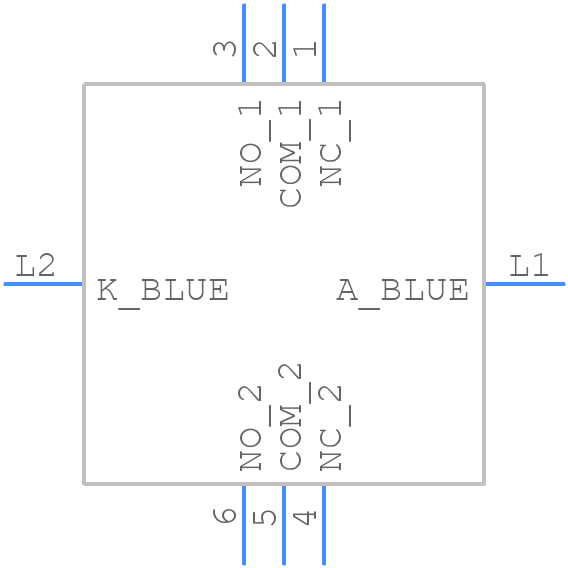

Symbol
LP4EE1PBATB - E-Switch - PCB symbol
click to zoom
PCB Footprints
LP4EE1PBATB - E-Switch PCB footprint - Other - Other - LP4EE1PBATB-1
click to zoom
3D Models
LP4EE1PBATB - E-Switch - 3D model - Other - LP4EE1PBATB-1
click to zoom

LP4EE1PBATB Details

  • Manufacturer Part Number:

    LP4EE1PBATB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.33

  • Manufacturer:

    E-Switch Inc

  • Actuator Travel:

    1.4986 mm

  • Actuator Type:

    PUSHBUTTON

  • Additional Feature:

    BLUE LED

  • Body Color:

    BLACK

  • Contact Current(DC)-Max:

    0.1 A

  • Contact (DC) Max Rating R Load:

    0.1A@30VDC

  • Contact Resistance:

    0.05 mΩ

  • Contact Voltage(DC)-Max:

    30 V

  • Dielectric Withstand Volts:

    500VAC V

  • Electrical Life:

    50000 Cycle(s)

  • Illumination:

    LED

  • Insulation Resistance:

    100000000 Ω

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • PCB Hole Count:

    8

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DPDT

  • Switch Type:

    PUSHBUTTON SWITCH

  • Terminal Length:

    0.138 inch

  • Termination Type:

    SOLDER

LP4EE1PBATB Frequently Asked Questions (FAQs)

  • The recommended torque for the switch's threaded bushing is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the LP4EE1PBATB is designed to withstand high-vibration environments, but it's recommended to consult with E-Switch Inc for specific vibration testing and validation.
  • The LP4EE1PBATB has an operating temperature range of -20°C to 85°C (-4°F to 185°F), but it's recommended to derate the switch's performance at extreme temperatures.
  • The LP4EE1PBATB has an IP67 rating, making it suitable for washdown and harsh environments, but it's essential to follow proper sealing and installation guidelines to maintain the IP rating.
  • Yes, E-Switch Inc offers customization options for the LP4EE1PBATB, including custom colors, actuators, and circuit configurations. Contact E-Switch Inc for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LP4EE1PBATB Overview

Use the download button to access the LP4EE1PBATB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP4EE, or try a keyword search, such as Pushbutton Switches
