LP4EE1PBATG - E-Switch

Description: PUSHBUTTON, 100mA, 30VDC DPDT, On-On Through Hole

Download LP4EE1PBATG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

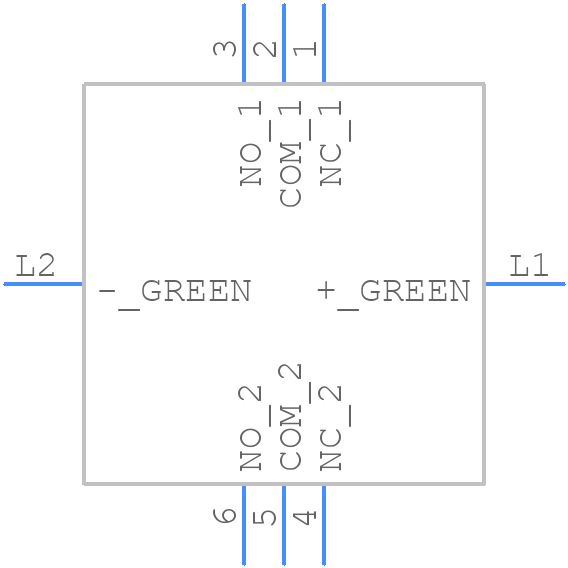

Symbol
LP4EE1PBATG - E-Switch - PCB symbol
click to zoom
PCB Footprints
LP4EE1PBATG - E-Switch PCB footprint - Other - Other - 10.00x10.00x13.50mm
click to zoom
3D Models
LP4EE1PBATG - E-Switch - 3D model - Other - 10.00x10.00x13.50mm
click to zoom

LP4EE1PBATG Details

  • Manufacturer Part Number:

    LP4EE1PBATG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.33

  • Manufacturer:

    E-Switch Inc

  • Actuator Travel:

    1.4986 mm

  • Actuator Type:

    PUSHBUTTON

  • Additional Feature:

    GREEN LED

  • Body Color:

    BLACK

  • Contact Current(DC)-Max:

    0.1 A

  • Contact (DC) Max Rating R Load:

    0.1A@30VDC

  • Contact Resistance:

    0.05 mΩ

  • Contact Voltage(DC)-Max:

    30 V

  • Dielectric Withstand Volts:

    500VAC V

  • Electrical Life:

    50000 Cycle(s)

  • Illumination:

    LED

  • Insulation Resistance:

    100000000 Ω

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • PCB Hole Count:

    8

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DPDT

  • Switch Type:

    PUSHBUTTON SWITCH

  • Terminal Length:

    0.138 inch

  • Termination Type:

    SOLDER

LP4EE1PBATG Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the switch.
  • The LP4EE1PBATG has built-in ESD protection, which can withstand electrostatic discharges up to 8kV contact discharge and 15kV air discharge, ensuring reliable operation in harsh environments.
  • The LP4EE1PBATG operates within a temperature range of -40°C to 85°C (-40°F to 185°F), making it suitable for a wide range of applications.
  • Yes, the LP4EE1PBATG is compatible with lead-free soldering processes, making it an environmentally friendly option for modern electronics manufacturing.
  • The typical bounce time for the LP4EE1PBATG switch is around 5ms, which is relatively fast and suitable for most applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LP4EE1PBATG Overview

Use the download button to access the LP4EE1PBATG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP4EE, or try a keyword search, such as Pushbutton Switches
