The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the switch.
Yes, LP4EE1PBATR is compatible with lead-free soldering processes. E-Switch Inc ensures that their products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
The expected lifespan of LP4EE1PBATR is 100,000 to 200,000 actuations, depending on the operating conditions and usage. However, this can vary depending on the specific application and environmental factors.
Yes, LP4EE1PBATR is designed to withstand high-vibration and high-shock environments. It meets the requirements of IEC 60068-2-27 and IEC 60068-2-6 for vibration and shock resistance, respectively.
Yes, LP4EE1PBATR is designed to operate in a wide range of temperatures (-40°C to 85°C) and humidity levels (up to 95% RH). It's suitable for use in outdoor or harsh environmental conditions, but it's essential to ensure proper sealing and protection to prevent ingress of moisture or contaminants.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP4EE1PBATR Overview

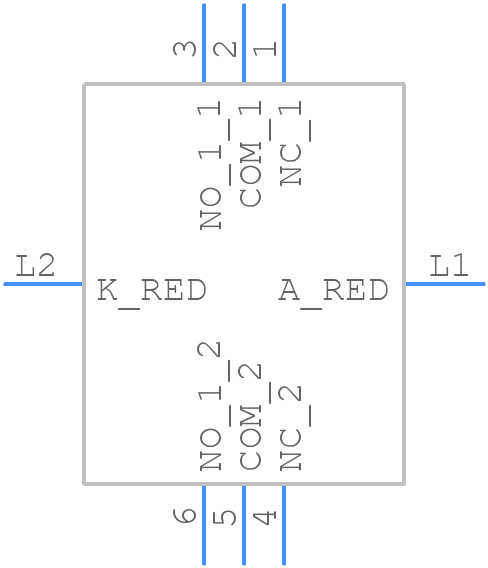

Use the download button to access the LP4EE1PBATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP4EE,
or try a keyword search, such as Pushbutton Switches
