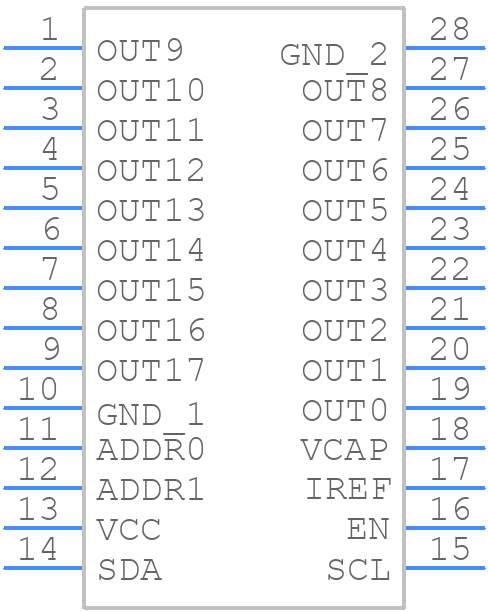

LP5018DGSR - Texas Instruments

LP5018DGSR Details

• Manufacturer Part Number:

  LP5018DGSR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Data Input Mode:

  SERIAL

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e4

• Length:

  7.1 mm

• Moisture Sensitivity Level:

  2

• Multiplexed Display Capability:

  NO

• Number of Channels:

  18

• Number of Functions:

  1

• Number of Segments:

  24

• Number of Terminals:

  28

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  CONSTANT-CURRENT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP28,.19,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  8 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm

• fmax-Min:

  0.4 MHz
