LP5030RJVR - Texas Instruments

Description: 30-channel I2C constant current RGB LED driver

Download LP5030RJVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

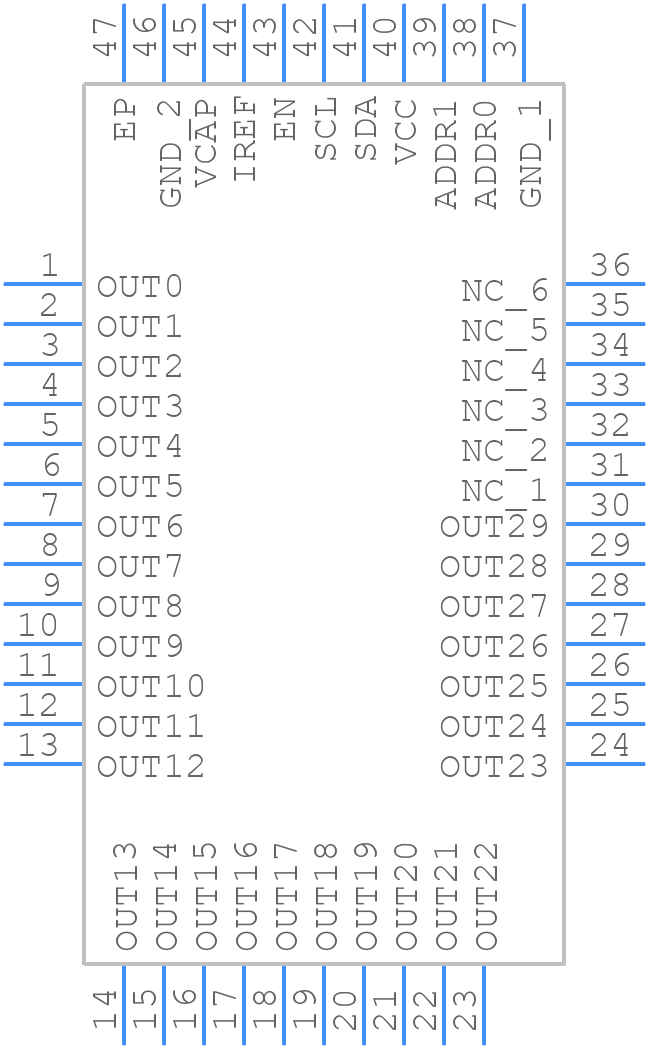

Symbol
LP5030RJVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LP5030RJVR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LP5030RJVR
click to zoom
3D Models
LP5030RJVR - Texas Instruments - 3D model - Quad Flat No-Lead - LP5030RJVR
click to zoom

LP5030RJVR Details

  • Manufacturer Part Number:

    LP5030RJVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-09-21

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-XQCC-N46

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    30

  • Number of Functions:

    1

  • Number of Segments:

    30

  • Number of Terminals:

    46

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • fmax-Min:

    0.4 MHz

LP5030RJVR Frequently Asked Questions (FAQs)

  • A good PCB layout for the LP5030RJVR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces to reduce EMI and noise.
  • Choose input and output capacitors with low ESR and high ripple current ratings. A minimum capacitance of 10uF is recommended for the input capacitor, and 22uF for the output capacitor. X5R or X7R ceramic capacitors are good options.
  • The LP5030RJVR can operate in an ambient temperature range of -40°C to 125°C, but the junction temperature should not exceed 150°C.
  • To ensure stability, ensure that the output capacitor has a low ESR, the input voltage is within the recommended range, and the device is operated within the recommended frequency range. Additionally, a minimum of 10uF input capacitance and 22uF output capacitance is recommended.
  • Yes, the LP5030RJVR is a high-reliability device, with a failure rate of <10 FIT (failures per billion hours) at 125°C. It is suitable for use in high-reliability applications such as automotive, industrial, and medical devices.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LP5030RJVR Overview

Use the download button to access the LP5030RJVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP503, or try a keyword search, such as Display Drivers
