LP5520TL/NOPB - Texas Instruments

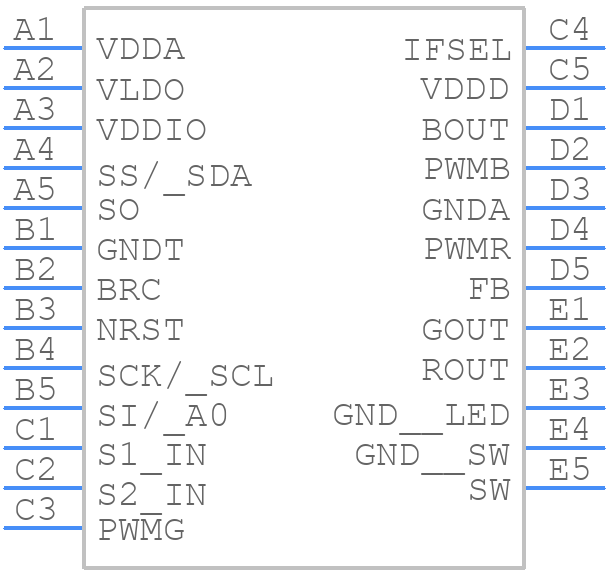

LP5520TL/NOPB Details

• Manufacturer Part Number:

  LP5520TL/NOPB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Data Input Mode:

  SERIAL

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  R-XBGA-B25

• JESD-609 Code:

  e1

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Multiplexed Display Capability:

  NO

• Number of Channels:

  3

• Number of Functions:

  1

• Number of Segments:

  18

• Number of Terminals:

  25

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• Output Characteristics:

  CONSTANT-CURRENT

• Output Polarity:

  TRUE

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA25,5X5,20

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.675 mm

• Supply Current-Max:

  0.007 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.9 V

• Supply Voltage1-Max:

  5.5 V

• Supply Voltage1-Min:

  1.6 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  2.8 mm

• fmax-Min:

  13 MHz
