Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The datasheet provides a recommended layout and routing guide.
To optimize LED current accuracy, ensure that the sense resistor (RSENSE) is placed close to the LP5523, and that the PCB traces are short and wide to minimize voltage drops. Also, use a high-precision sense resistor and ensure that the LP5523 is operated within its recommended temperature range.
The LP5523 can handle a maximum LED voltage of 17.5V. However, the maximum voltage is dependent on the specific LED configuration and the voltage regulator used. Consult the datasheet and application notes for more information.
The LP5523 has built-in fault detection and protection features, including over-temperature protection, over-current protection, and under-voltage lockout. Additionally, external fault detection and protection circuits can be implemented using external components and programming the LP5523's fault detection registers.
The recommended power-up sequence for the LP5523 is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the input voltage (VIN). This ensures that the internal voltage regulators are properly powered up and stabilized before the device becomes active.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP5523TM/NOPB Overview

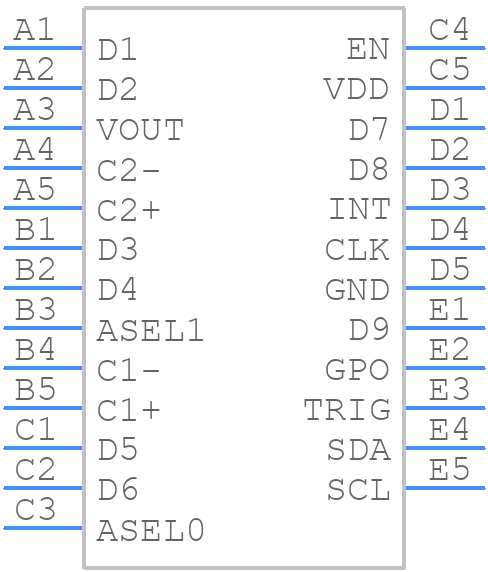

Use the download button to access the LP5523TM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP552,
or try a keyword search, such as Display Drivers
