Texas Instruments provides a recommended PCB layout in the LP5524 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
The LP5524's internal registers can be programmed using the I2C interface. Texas Instruments provides a programming guide and register maps in the datasheet and application notes, which explain how to access and modify the registers to configure the device's behavior.
The LP5524's output channels are rated for a maximum current of 30mA per channel. However, the total current drawn from the device should not exceed the maximum rating of 150mA to ensure reliable operation and prevent overheating.
The LP5524 is designed to operate with a 5V supply voltage, but it can also be used with a 3.3V supply voltage with some limitations. However, the device's performance and functionality may be affected, and the output current rating may be reduced. Consult the datasheet and application notes for more information.
The LP5524 has built-in fault detection and protection features, including overcurrent protection, short-circuit protection, and thermal shutdown. These features can be enabled and configured through the device's internal registers. Additionally, external fault detection and protection circuits can be implemented using discrete components and sensors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP5524TMX-5/NOPB Overview

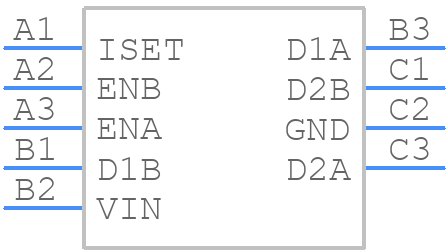

Use the download button to access the LP5524TMX-5/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP552,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
