A good PCB layout for the LP55281RL/NOPB involves keeping the power and ground planes separate, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The recommended power-up sequence for the LP55281RL/NOPB is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the enable pin (EN). For power-down, the sequence should be reversed. It's also important to ensure that the enable pin is low before removing the power supplies.
The LP55281RL/NOPB can sink or source up to 25mA of current on its output pins. However, it's recommended to limit the current to 10mA or less to ensure reliable operation and to prevent overheating.
The LP55281RL/NOPB can be configured for a specific LED configuration using the device's internal registers. The configuration involves setting the LED current, LED voltage, and LED timing using the device's I2C interface. The specific configuration will depend on the LED type, number of LEDs, and desired brightness and color.
The LP55281RL/NOPB can generate significant heat during operation, especially at high currents. To manage thermal issues, it's recommended to use a heat sink, ensure good airflow, and keep the device away from other heat-generating components. Additionally, reducing the device's power consumption by optimizing the LED configuration and using the device's low-power modes can also help reduce thermal issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP55281RL/NOPB Overview

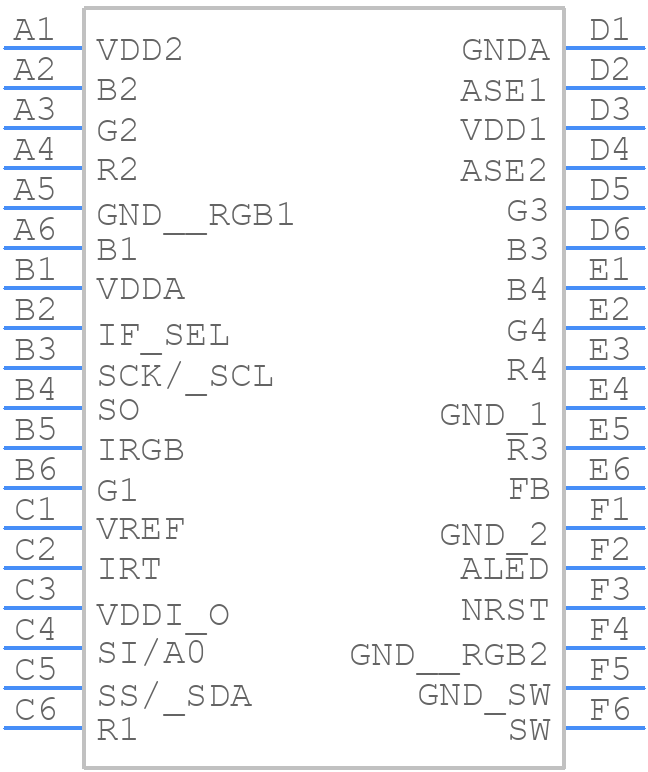

Use the download button to access the LP55281RL/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP552,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
