A good PCB layout for the LP55281TL/NOPB should include a solid ground plane, wide power traces, and a thermal relief pattern around the device to facilitate heat dissipation. TI provides a recommended PCB layout in the datasheet, but it's essential to consult with a PCB design expert to ensure optimal thermal performance.
To ensure proper configuration, carefully review the datasheet and application notes. TI provides a configuration tool on their website, which can help generate the necessary code for your specific LED application. Additionally, consult with TI's technical support team or a qualified engineer with experience in LED driver design.
The critical components affecting power efficiency are the inductor, capacitors, and MOSFETs. To optimize power efficiency, select components with low equivalent series resistance (ESR) and high-quality inductors with low DC resistance. Additionally, ensure proper PCB layout and thermal management to minimize power losses.
To troubleshoot issues, start by reviewing the datasheet and application notes. Check the power supply, input voltage, and output current. Use an oscilloscope to monitor the device's internal signals and output waveforms. Consult TI's technical support team or a qualified engineer with experience in LED driver design for further assistance.
Thermal management is critical for reliable operation. Ensure good airflow around the device, and consider using a heat sink or thermal interface material. Monitor the device's junction temperature (TJ) and ensure it remains within the specified range. Consult the datasheet and application notes for thermal management guidelines.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LP55281TL/NOPB Overview

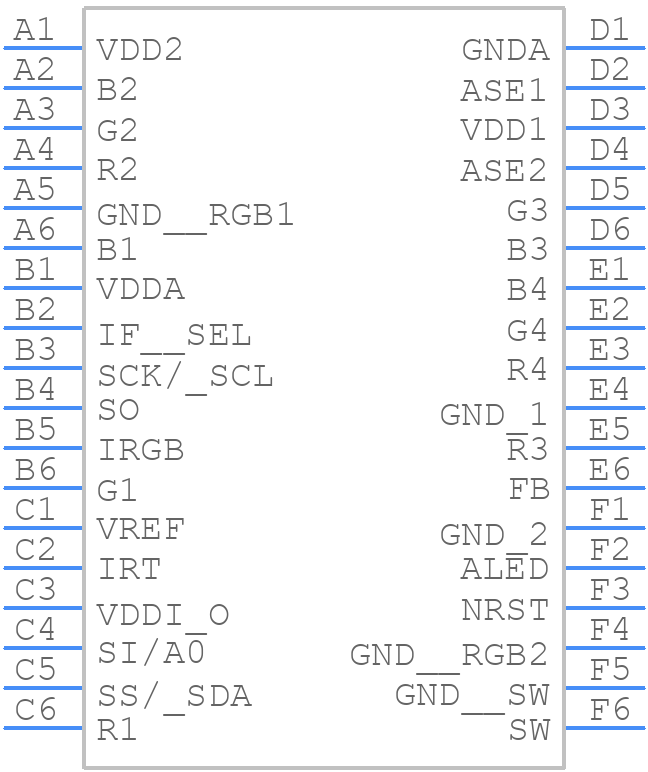

Use the download button to access the LP55281TL/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP552,
or try a keyword search, such as Display Drivers
