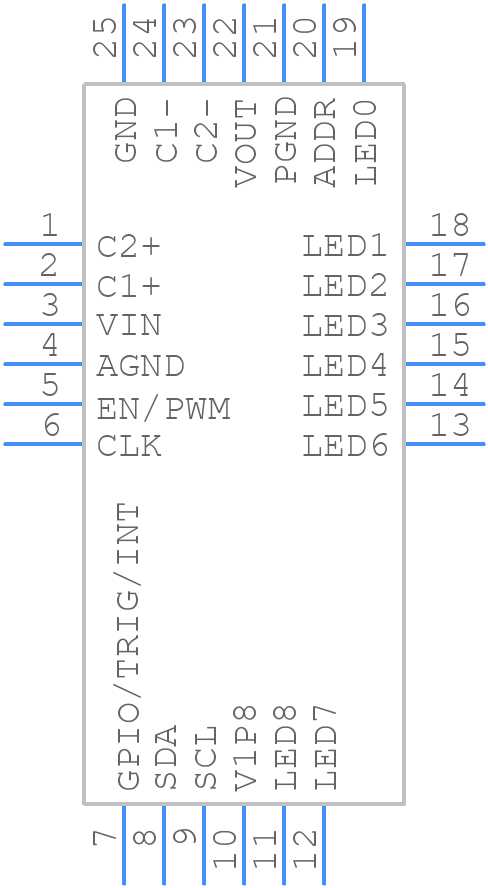

LP5569RTWR - Texas Instruments

LP5569RTWR Details

• Manufacturer Part Number:

  LP5569RTWR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Date Of Intro:

  2017-08-09

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Data Input Mode:

  SERIAL

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  S-PQCC-N24

• JESD-609 Code:

  e4

• Length:

  4 mm

• Moisture Sensitivity Level:

  1

• Multiplexed Display Capability:

  NO

• Number of Channels:

  9

• Number of Functions:

  1

• Number of Segments:

  9

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  CONSTANT-CURRENT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HWQCCN

• Package Equivalence Code:

  LCC24,.16SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Supply Current-Max:

  0.19 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.5 V

• Supply Voltage-Nom:

  3.6 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4 mm

• fmax-Min:

  0.4 MHz
