Texas Instruments recommends a compact layout with the device placed close to the input capacitors and output filter components. A 4-layer PCB with a solid ground plane is recommended to minimize noise and EMI. Refer to the LP5810DDSDR evaluation module layout as a reference.
The output filter design depends on the specific application requirements. As a general guideline, use a low-ESR output capacitor (e.g., ceramic or polymer) with a value between 10uF to 22uF. The inductor value can range from 1uH to 10uH, depending on the output current and ripple requirements. TI provides an output filter design tool to help with the selection process.
Although the datasheet specifies a maximum input voltage of 5.5V, the device can handle up to 6V for short durations (e.g., during power-up or voltage transients). However, sustained operation above 5.5V may reduce the device's reliability and lifespan.
To ensure stability, follow the recommended layout and placement guidelines, and use a sufficient output capacitor with a low ESR. Additionally, ensure that the input capacitor is properly decoupled and the device is operated within its specified input voltage range. If oscillations occur, try adding a small ceramic capacitor (e.g., 10nF) between the VIN pin and GND.
The LP5810DDSDR is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at high temperatures. If your application requires operation above 105°C, consider using a heat sink or a thermally enhanced package. Always follow the recommended operating conditions and derating guidelines to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP5810DDSDR Overview

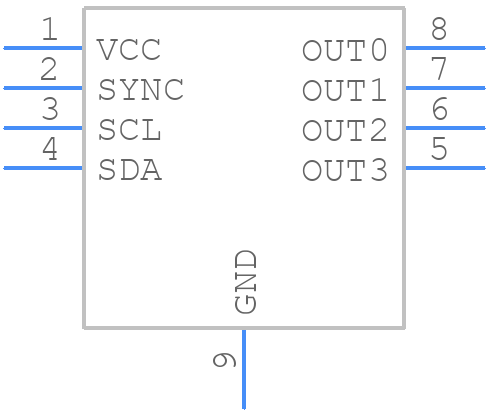

Use the download button to access the LP5810DDSDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP581,
or try a keyword search, such as Display Drivers
