LP5861RSMR - Texas Instruments

Description: LED Lighting Driver ICs 18-channel RGB LED driver with 8-bit analog and 8-/16-bit PWM dimming 32-VQFN -40 to 85

Download LP5861RSMR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

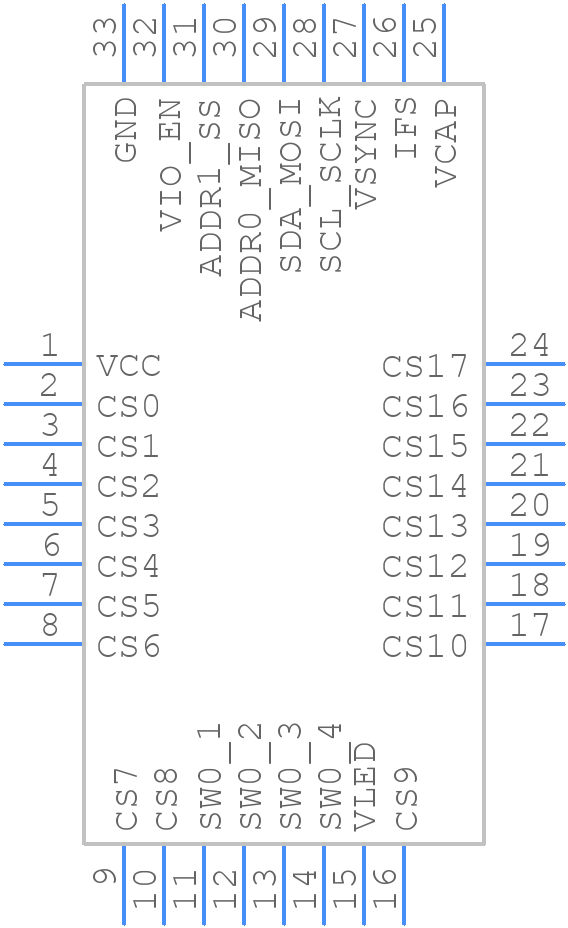

LP5861RSMR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LP5861RSMR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSM0032B
click to zoom
3D Models
LP5861RSMR - Texas Instruments - 3D model - Quad Flat No-Lead - RSM0032B
click to zoom

LP5861RSMR Details

  • Manufacturer Part Number:

    LP5861RSMR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia, Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Display Mode:

    DOT MATRIX

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    18

  • Number of Functions:

    1

  • Number of Segments:

    18

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    2.7 V

  • Supply Voltage1-Nom:

    3.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • fmax-Min:

    12 MHz

LP5861RSMR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended for the top layer.
  • To ensure stable output voltage regulation, it's essential to decouple the input voltage with a capacitor (e.g., 10uF) and use a low-ESR output capacitor (e.g., 22uF). Additionally, ensure the input voltage is within the recommended range (2.7V to 5.5V) and the output voltage is set within the adjustable range (1.2V to 3.3V).
  • The LP5861RSMR can deliver up to 1A of output current. However, the maximum output current is dependent on the input voltage, output voltage, and ambient temperature. It's essential to consult the datasheet's thermal derating curves to determine the maximum output current for a specific application.
  • The LP5861RSMR has built-in overcurrent protection (OCP) and short-circuit protection (SCP). However, it's recommended to add external protection components, such as a fuse or a current-limiting resistor, to prevent damage from excessive current surges or faults.
  • Texas Instruments recommends using a low-ESR, X5R or X7R ceramic capacitor with a value of 10uF to 22uF for the input capacitor. This helps to filter out noise and ensure stable operation.
