Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended for optimal heat dissipation.
To ensure stable output voltage, it's essential to decouple the input voltage with a capacitor (e.g., 10uF) and use a feedback capacitor (e.g., 22nF) to stabilize the output voltage. Additionally, ensure the input voltage is within the recommended range (2.7V to 5.5V) and the output voltage is set within the specified range (0.8V to 3.3V).
The LP5861TRSMR can deliver up to 1A of output current, but it's recommended to derate the output current based on the ambient temperature and the device's thermal performance. For example, at 25°C, the maximum output current is 1A, but at 85°C, it's recommended to limit the output current to 0.5A.
To protect the LP5861TRSMR from overvoltage and undervoltage conditions, use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it exceeds the recommended range. Additionally, consider using a TVS diode or a zener diode to clamp the input voltage and prevent damage from voltage spikes or surges.
Texas Instruments recommends using a 10uF to 22uF ceramic capacitor (X5R or X7R dielectric) as the input capacitor. This value provides a good balance between input voltage filtering and stability. Avoid using electrolytic capacitors as they can cause instability and affect the device's performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP5861TRSMR Overview

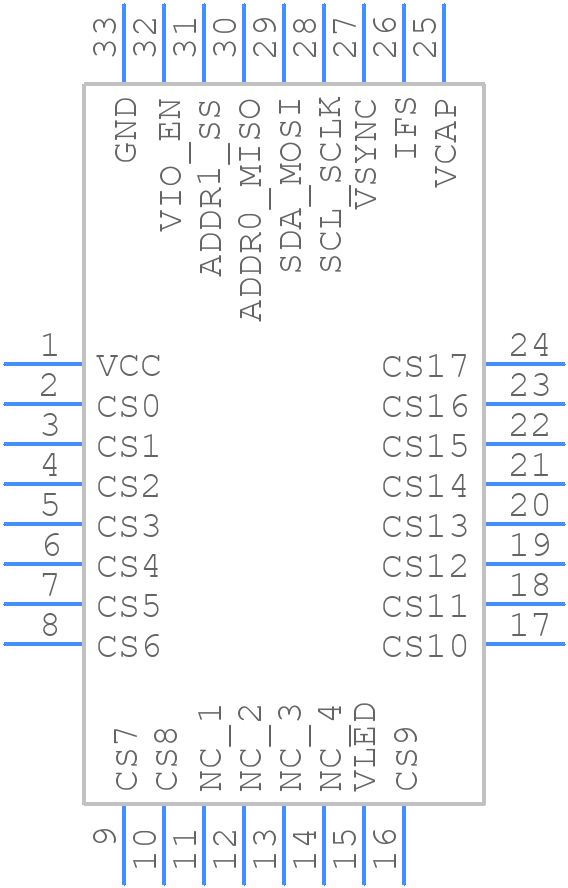

Use the download button to access the LP5861TRSMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP586,
or try a keyword search, such as Display Drivers
