Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended for optimal heat dissipation.
To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor selection, as well as the layout guidelines provided in the datasheet. Additionally, ensure that the input voltage is within the recommended range, and the output current is within the specified limits.
The LP5867YBHR is rated for operation up to 85°C ambient temperature. However, it's recommended to derate the output current and ensure proper heat sinking to maintain a junction temperature below 125°C for reliable long-term operation.
Yes, the LP5867YBHR is designed to withstand high-vibration environments. However, it's essential to ensure that the device is properly secured to the PCB and that the PCB is designed to withstand the vibration levels. Additionally, consider using a vibration-resistant capacitor and ensuring that the solder joints are robust.
To troubleshoot output voltage errors or instability, check the input voltage, output current, and output voltage ripple. Ensure that the input and output capacitors are properly selected and placed. Verify that the PCB layout follows the recommended guidelines, and check for any signs of overheating or thermal stress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP5867YBHR Overview

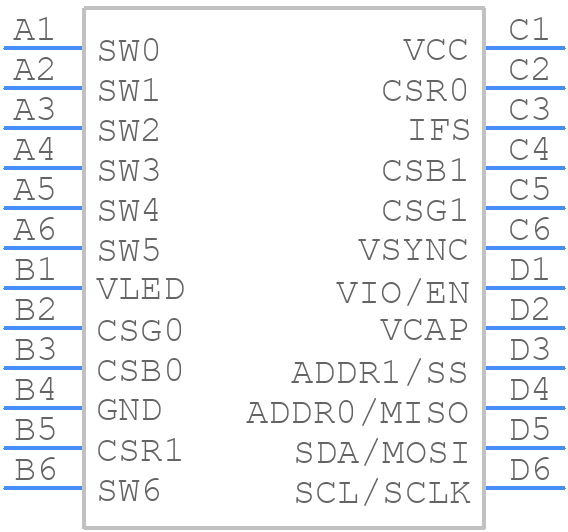

Use the download button to access the LP5867YBHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP586,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
