A recommended PCB layout for the LP8550TLE/NOPB involves placing the device near a thermal pad or heat sink, using a 2-layer or 4-layer board, and keeping the thermal vias as close to the device as possible. Additionally, using a solid ground plane and minimizing the distance between the device and the thermal pad can help to reduce thermal resistance.
To ensure the LP8550TLE/NOPB is properly powered and biased, make sure to provide a stable input voltage within the recommended range (2.7V to 5.5V), and use a suitable bypass capacitor (e.g., 1uF) to filter out noise. Additionally, ensure that the EN pin is properly biased to enable the device, and that the output voltage is within the recommended range (0.8V to 3.3V).
When selecting the output capacitor (COUT) for the LP8550TLE/NOPB, consider the following: choose a capacitor with a low equivalent series resistance (ESR) to minimize output voltage ripple, select a capacitor with a suitable voltage rating (at least 1.5 times the output voltage), and ensure the capacitor is placed close to the device to minimize parasitic inductance.
To troubleshoot issues with the LP8550TLE/NOPB, start by verifying the input voltage and current, and checking for proper PCB layout and thermal design. Use an oscilloscope to monitor the output voltage and current, and check for signs of overheating, such as excessive temperature or thermal shutdown. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
The LP8550TLE/NOPB is a high-current, low-dropout linear regulator with a wide input voltage range and low quiescent current. Compared to other similar devices from Texas Instruments, the LP8550TLE/NOPB offers higher output current capability (up to 1.5A) and a wider input voltage range (2.7V to 5.5V). It also has a lower dropout voltage and lower quiescent current, making it suitable for battery-powered applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP8550TLE/NOPB Overview

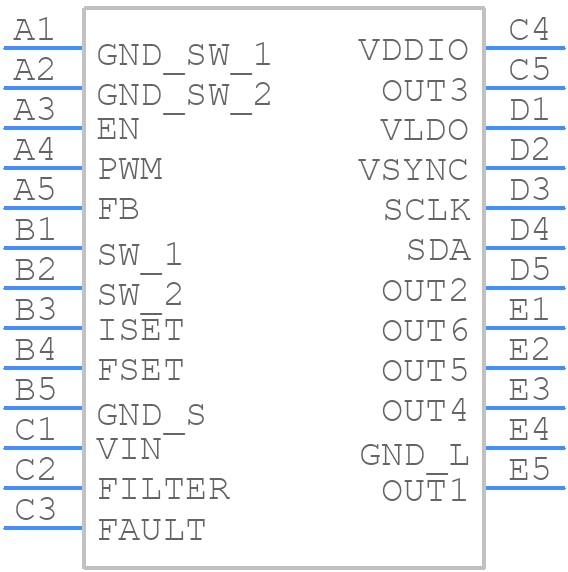

Use the download button to access the LP8550TLE/NOPB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LP855,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
