Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal performance. Additionally, it's recommended to have a minimum of 2 vias under the device to connect the thermal pad to the ground plane.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, including providing adequate heat sinking and thermal management. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
The recommended input capacitor value is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) and a voltage rating of at least 6.3V. A ceramic or tantalum capacitor is recommended due to their low ESR and high reliability.
To troubleshoot issues with the device not turning on or not regulating properly, check the input voltage, output voltage, and enable pin voltage using an oscilloscope or multimeter. Ensure that the input voltage is within the recommended range, and the enable pin is properly biased. Also, verify that the output capacitor value and type meet the recommended specifications.
The recommended output capacitor value is 10uF to 22uF, with a low ESR and a voltage rating of at least 2.5V. A ceramic or tantalum capacitor is recommended due to their low ESR and high reliability. The output capacitor should be placed as close as possible to the output pin of the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP8553TLE/NOPB Overview

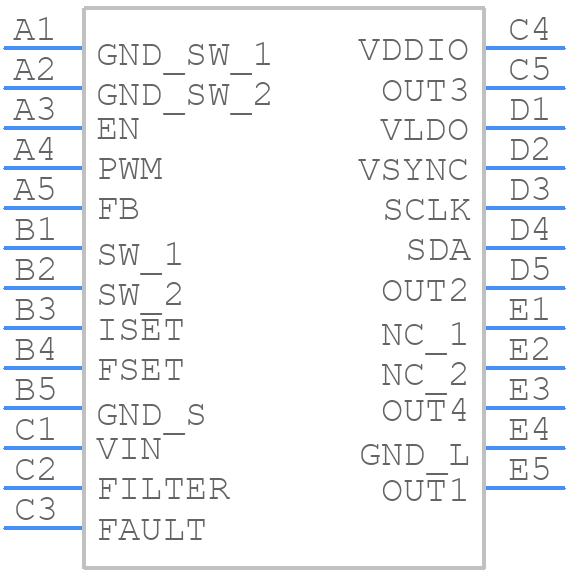

Use the download button to access the LP8553TLE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP855,
or try a keyword search, such as Display Drivers
