Texas Instruments provides a recommended PCB layout in the LP8555YFQR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance, especially for thermal and EMI considerations.
The LP8555YFQR has a flexible LED driver architecture that can be configured for various LED configurations. Engineers can use the TI's WEBENCH LED Designer tool to generate a custom configuration based on their specific LED requirements. The tool provides a step-by-step guide to select the LED type, configure the driver, and generate a schematic and BOM.
While the datasheet specifies an operating temperature range of -40°C to 125°C, the maximum ambient temperature range for the LP8555YFQR depends on the specific application and thermal design. Engineers should consider the device's thermal characteristics, PCB layout, and heat sinking to ensure reliable operation within their specific ambient temperature range.
To ensure EMC with the LP8555YFQR, engineers should follow proper PCB layout and design practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. Additionally, they should consider the device's EMI characteristics, such as its switching frequency and spectral emissions, and design their system to meet relevant EMC standards.
The recommended input capacitor value and type for the LP8555YFQR depend on the specific application and input voltage range. As a general guideline, a 10-22 μF ceramic capacitor with an X7R or X5R dielectric is recommended. However, engineers should consult the datasheet and application notes for more detailed guidance on input capacitor selection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP8555YFQR Overview

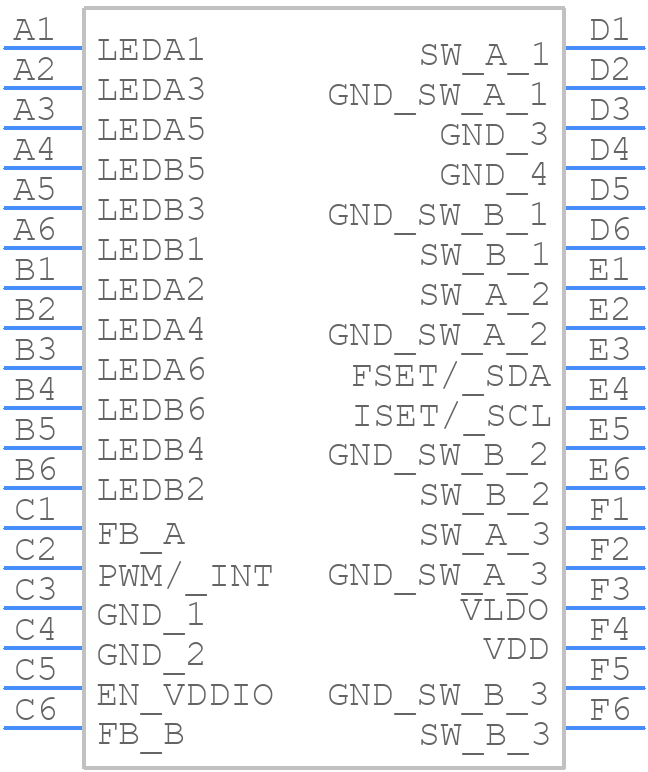

Use the download button to access the LP8555YFQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP855,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
