Texas Instruments provides a recommended PCB layout in the LP8556 application note (SLVAUH7) that includes thermal pad connections, copper pours, and via placement to minimize thermal resistance and ensure reliable operation.
Use the LP8556 Configurator Tool (available on the TI website) to generate a configuration file that meets your specific backlight requirements, including LED string configuration, dimming, and fault detection.
The LP8556 datasheet provides guidelines for input filter component selection, including capacitor and inductor values. TI also offers an Input Filter Design Tool (available on the TI website) to help engineers design an optimal input filter for their specific application.
Refer to the LP8556 Troubleshooting Guide (available on the TI website) that provides step-by-step procedures for identifying and resolving common issues, including LED flicker, dimming problems, and fault detection.
The LP8556 datasheet provides thermal design guidelines, including junction-to-case thermal resistance, thermal derating, and recommended operating temperatures. Engineers should also consider using thermal interface materials, heat sinks, and airflow management to ensure reliable operation in high-temperature environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP8556SQX-E09/NOPB Overview

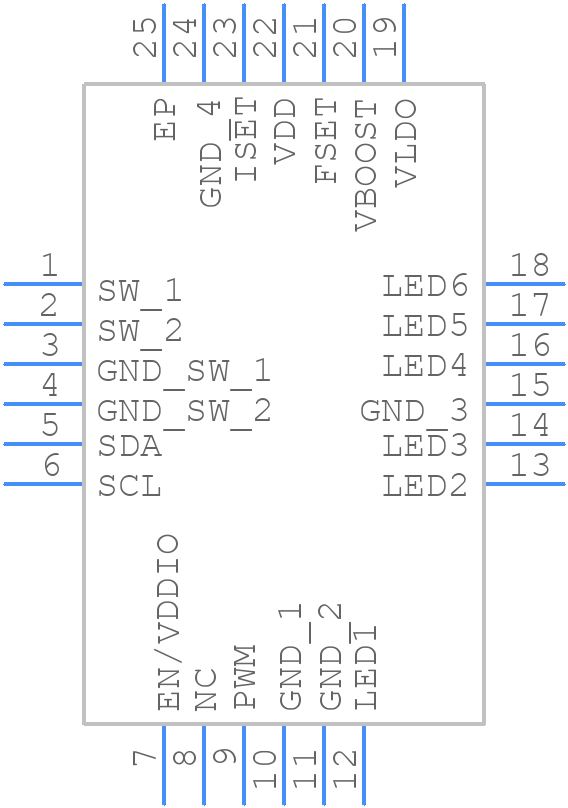

Use the download button to access the LP8556SQX-E09/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP855,
or try a keyword search, such as Display Drivers
