LP8556TMX-E06/NOPB - Texas Instruments

Description: 6 Channel High-Efficiency/Efficacy LED Backlight Driver

Download LP8556TMX-E06/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

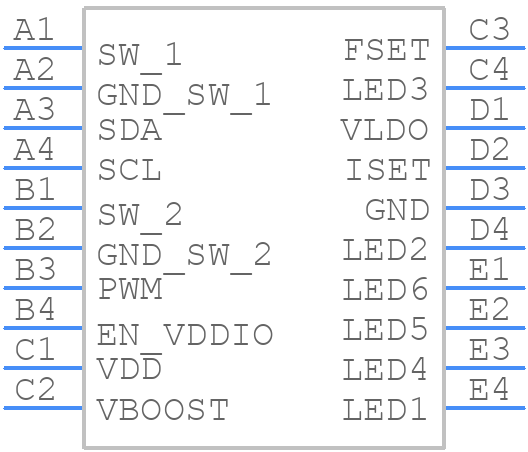

LP8556TMX-E06/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LP8556TMX-E06/NOPB - Texas Instruments PCB footprint - BGA - BGA - YFQ0020x_2021
click to zoom
3D Models
LP8556TMX-E06/NOPB - Texas Instruments - 3D model - BGA - YFQ0020x_2021
click to zoom

LP8556TMX-E06/NOPB Details

  • Manufacturer Part Number:

    LP8556TMX-E06/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-XBGA-B20

  • JESD-609 Code:

    e1

  • Length:

    2.371 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Segments:

    12

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.675 mm

  • Supply Current-Max:

    3.65 mA

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.71 mm

  • fmax-Min:

    1.25 MHz

LP8556TMX-E06/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal performance. Additionally, it's recommended to have a minimum of 2 vias under the device to connect the thermal pad to the ground plane.
  • The LP8556TMX-E06/NOPB has a power-on reset (POR) circuit that ensures the device is properly powered up and configured during startup. However, it's recommended to add an external capacitor between the VCC and GND pins to filter out any noise and ensure a clean power-up sequence.
  • The LP8556TMX-E06/NOPB can sink up to 10mA of current per output pin. However, it's recommended to limit the current to 5mA or less to ensure reliable operation and prevent overheating.
  • To troubleshoot I2C interface issues, use a logic analyzer or oscilloscope to verify the clock and data signals. Ensure that the I2C bus is properly terminated and that the device is properly addressed. Also, check the device's status registers to identify any error conditions.
  • The LP8556TMX-E06/NOPB is rated for operation from -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LP8556TMX-E06/NOPB Overview

Use the download button to access the LP8556TMX-E06/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP855, or try a keyword search, such as Display Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
