A good PCB layout for the LP8556 should include a solid ground plane, a separate power plane for the input voltage, and a thermal relief pattern on the exposed pad to ensure good heat dissipation. TI provides a recommended PCB layout in the datasheet.
The input capacitor should be chosen based on the input voltage ripple requirement, output voltage, and the maximum input current. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the input voltage.
The LP8556 can deliver up to 1.5A of output current, but this is dependent on the input voltage, output voltage, and the thermal conditions. It's recommended to check the datasheet for the specific output current capability based on the application requirements.
To ensure stability, it's recommended to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, the output capacitor should be chosen to ensure a stable output voltage, and the input capacitor should be chosen to filter out high-frequency noise.
The LP8556 is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. It's recommended to ensure good thermal design and heat dissipation to prevent overheating, especially in high-temperature environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP8556TMX-E11/NOPB Overview

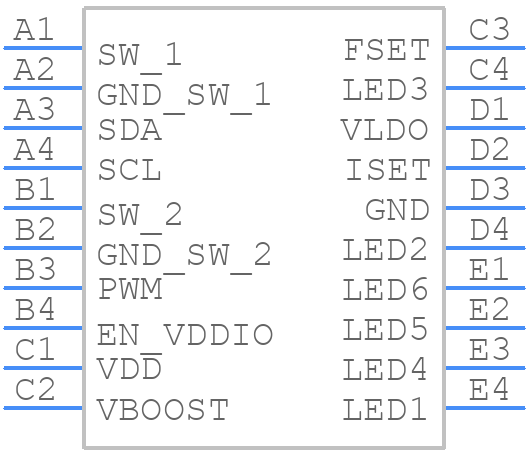

Use the download button to access the LP8556TMX-E11/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP855,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
