Texas Instruments provides a recommended PCB layout in the LP8557 Evaluation Module User's Guide (SLUU444) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The LP8557AYFQR is a highly configurable device, and the configuration depends on the specific LED configuration. Texas Instruments provides a LED Configurator Tool (SLVCAT) that helps engineers to configure the device for their specific LED configuration, including setting the LED current, voltage, and dimming parameters.
The LP8557AYFQR has an operating ambient temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Engineers should consult the thermal management section in the datasheet and perform thermal analysis to ensure the device operates within a safe temperature range.
To ensure the LP8557AYFQR meets the EMC requirements, engineers should follow the guidelines in the datasheet and application notes, including using proper PCB layout, component selection, and shielding. Additionally, Texas Instruments provides EMC-related documentation and support to help engineers meet the EMC requirements for their specific application.
The recommended input capacitor value and type depend on the specific application and input voltage. As a general guideline, a 10uF to 22uF X5R or X7R ceramic capacitor is recommended for most applications. However, engineers should consult the datasheet and application notes for more specific guidance and perform input capacitor selection based on their specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP8557AYFQR Overview

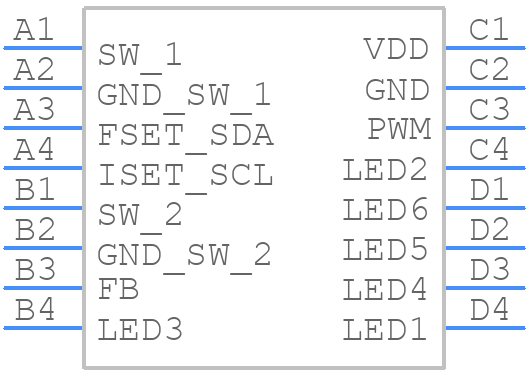

Use the download button to access the LP8557AYFQR schematic symbol, PCB footprint, and 3D model.
