LP87565VRNFRQ1 - Texas Instruments

Description: Power Management Specialized - PMIC Automotive multipha se dual 8A buck conv

Download LP87565VRNFRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

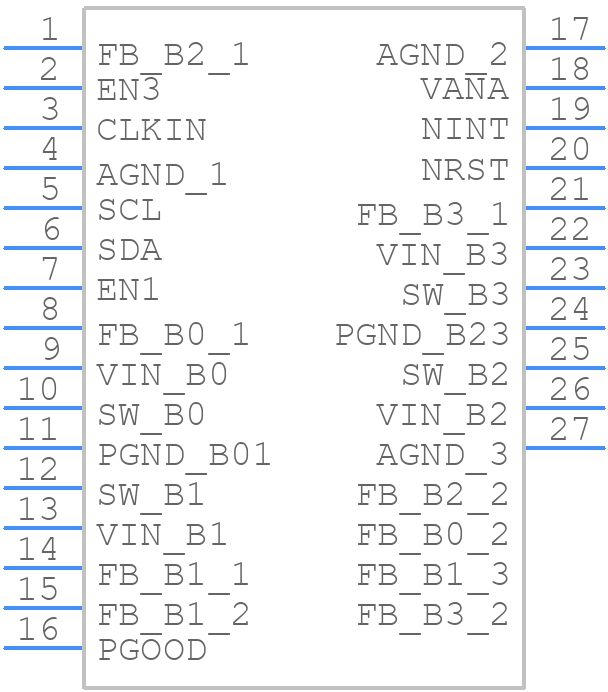

Symbol
LP87565VRNFRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LP87565VRNFRQ1 - Texas Instruments PCB footprint - Other - Other - RNF0026C
click to zoom
3D Models
LP87565VRNFRQ1 - Texas Instruments - 3D model - Other - RNF0026C
click to zoom

LP87565VRNFRQ1 Details

  • Manufacturer Part Number:

    LP87565VRNFRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN PFM CONTOL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    3.7 V

  • JESD-30 Code:

    R-PQCC-N26

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Output Voltage-Max:

    3.36 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC26,.16X.18,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LP87565VRNFRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the LP87565 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The LP87565 can be configured for a specific output voltage using the I2C interface. The device has a programmable output voltage range of 0.7V to 3.3V, and the desired output voltage can be set using the VOUT register. Refer to the datasheet for the specific register settings and I2C communication protocol.
  • The LP87565 has an absolute maximum input voltage rating of 5.5V. However, the recommended input voltage range is 2.7V to 5.5V for optimal performance and reliability.
  • The LP87565 has built-in OCP and SCP features. The device can be configured to limit the output current to a specific value using the ILIM register. Additionally, the device has a built-in SCP feature that will shut down the device in case of a short-circuit condition. Refer to the datasheet for the specific register settings and implementation details.
  • The LP87565 has a thermal shutdown temperature of 150°C. If the device junction temperature exceeds this value, the device will shut down to prevent damage.
