Texas Instruments provides a recommended PCB layout in the LP8758A2EAYFFR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The LP8758A2EAYFFR output voltage can be configured using the I2C interface. The device has a programmable output voltage range of 0.7V to 3.3V, and the desired output voltage can be set using the VOUT register. Refer to the datasheet for the specific register settings and I2C communication protocol.
The LP8758A2EAYFFR has an absolute maximum input voltage rating of 5.5V. However, the recommended operating input voltage range is 2.7V to 5.5V. Exceeding the absolute maximum rating may damage the device.
To ensure stability and reliability, follow the recommended operating conditions, PCB layout guidelines, and thermal management recommendations in the datasheet. Additionally, ensure that the input voltage is within the recommended range, and the output capacitor is properly selected and placed.
The LP8758A2EAYFFR has an operating junction temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure that the device is properly heat-sinked and the thermal management recommendations in the datasheet are followed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP8758A2EAYFFR Overview

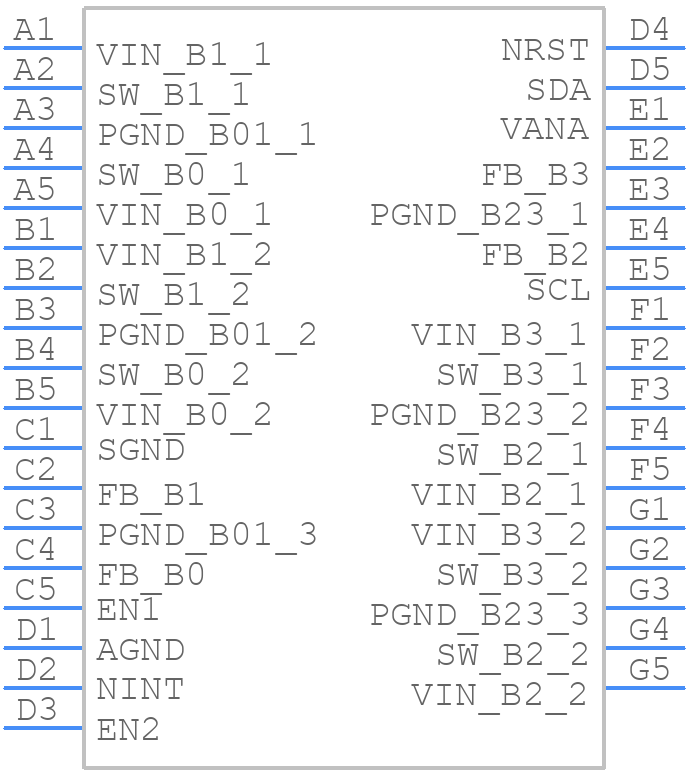

Use the download button to access the LP8758A2EAYFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP875,
or try a keyword search, such as Switching Regulator or Controllers
