Description:14-pin automotive-grade LED driver (–40°C to +125°C) with 4.5–65 V input, 2 A output (buck), integrated 2.6 A/150 mΩ MOSFET, 100 kHz–2.2 MHz switching, 256:1 analog + 150 ns PWM dimming, spread spectrum EMI, and full fault protection in a VSON package.
Texas Instruments provides a recommended PCB layout in the LP8865 application note (SLVAUH7) that includes thermal vias and heat sinks to ensure optimal thermal performance.
To ensure reliable start-up and shutdown, it is recommended to follow the power-up and power-down sequencing guidelines provided in the datasheet, and to use a soft-start circuit to limit inrush current.
Operating the device outside of the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even damage to the device. It is essential to ensure that the device operates within the specified voltage, current, and temperature ranges.
To troubleshoot issues with output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the feedback resistors are correctly connected and that the output voltage is within the specified range. Also, verify that the device is not overheating or experiencing excessive current draw.
To minimize EMI and EMC issues, follow proper PCB layout and design guidelines, use shielding and filtering components, and ensure that the device is properly decoupled. Additionally, consider using a spread-spectrum clock generator to reduce EMI emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP8865XQDMTRQ1 Overview

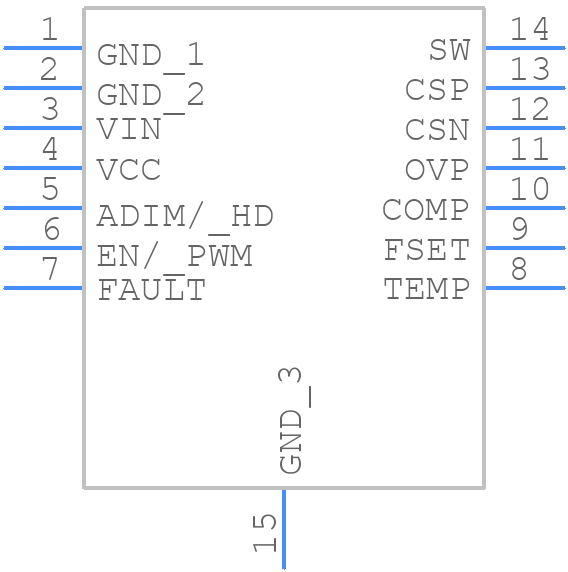

Use the download button to access the LP8865XQDMTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP886,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
