LPC1227FBD48/301 - NXP

Description: IC MCU 32BIT 128KB FLASH 48LQFP

Download LPC1227FBD48/301 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

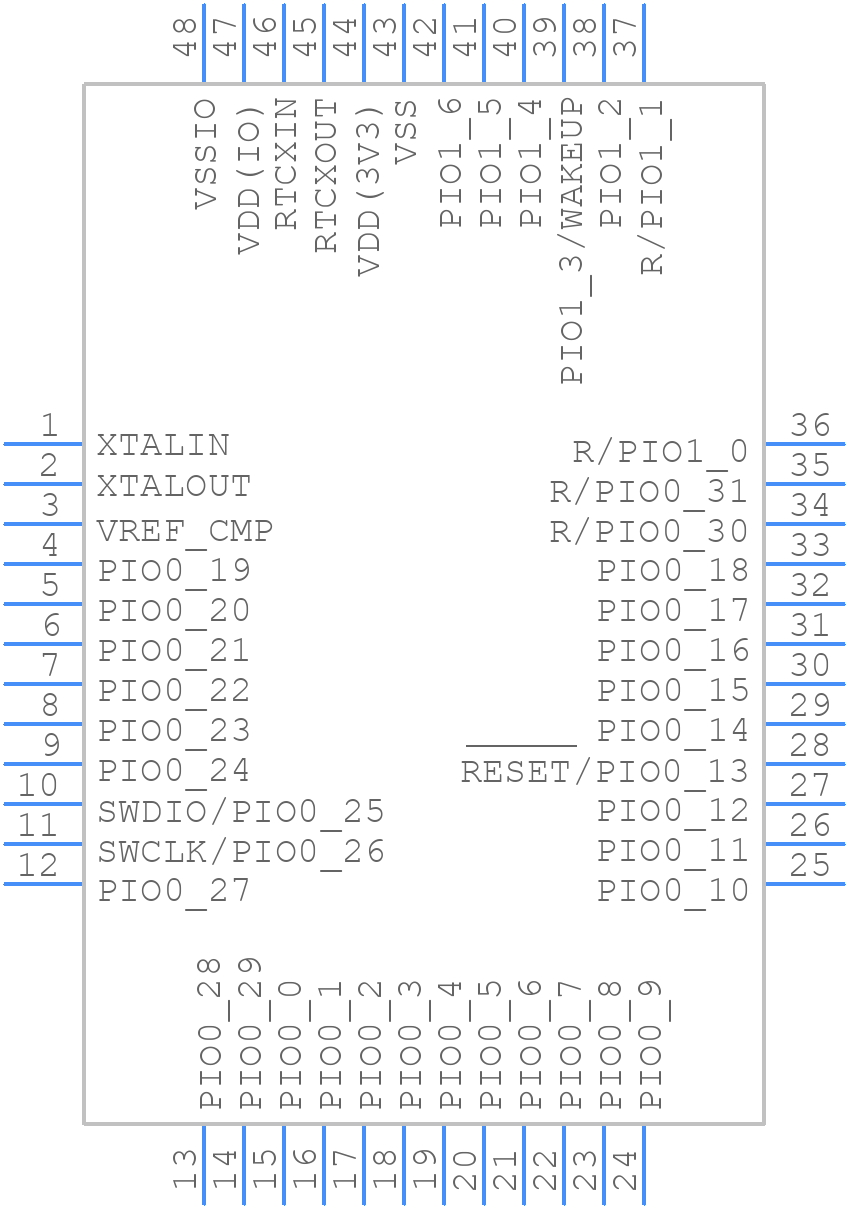

LPC1227FBD48/301 - NXP - PCB symbol
click to zoom
PCB Footprints
LPC1227FBD48/301 - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP48 (SOT313-2)
click to zoom
3D Models
LPC1227FBD48/301 - NXP - 3D model - Quad Flat Packages - LQFP48 (SOT313-2)
click to zoom

LPC1227FBD48/301 Details

  • Manufacturer Part Number:

    LPC1227FBD48/301

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    7 X 7 MM, 1.40 MM HEIGHT, PLASTIC, MS-026, SOT313-2, LQFP-48

  • Pin Count:

    48

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    8

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • CPU Family:

    CORTEX-M0

  • Clock Frequency-Max:

    25 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    39

  • Number of Terminals:

    48

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    8192

  • ROM (words):

    131072

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    45 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC
