LPC4333JBD144 - NXP

Description: High-performance ARM Cortex-M4 MCU (204 MHz) with FPU, Cortex-M0 coprocessor, 1 MB flash, 136 kB SRAM, 16 kB EEPROM, 2× USB, Ethernet, LCD, SPIFI (XIP), SCTimer/PWM, SGPIO, and ETM debug, ideal for advanced embedded applications.

Download LPC4333JBD144 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LPC4333JBD144 - NXP - PCB symbol
click to zoom
PCB Footprints

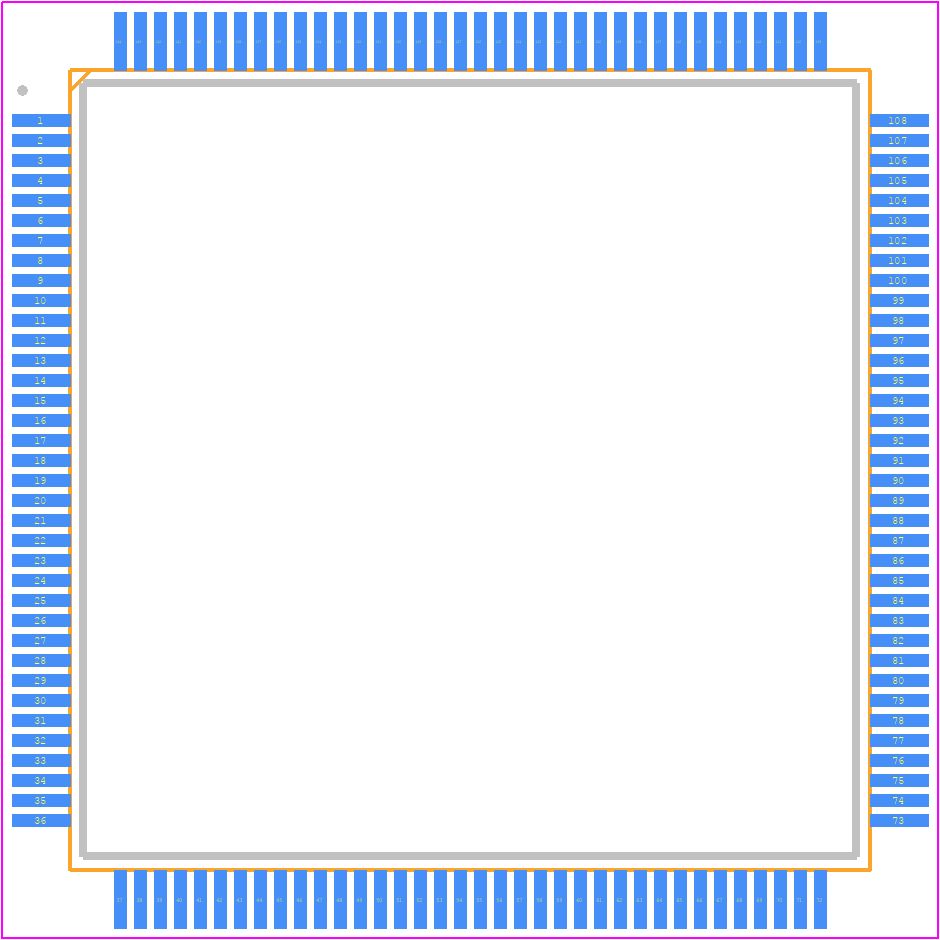

LPC4333JBD144 - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT486-1
click to zoom
3D Models
LPC4333JBD144 - NXP - 3D model - Quad Flat Packages - SOT486-1
click to zoom

LPC4333JBD144 Details

  • Manufacturer Part Number:

    LPC4333JBD144

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    20 X 20 MM, 1.40 MM HEIGHT, PLASTIC, SOT486-1, MS-026, LQFP-144

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    25 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G144

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    83

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    204 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    20 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

LPC4333JBD144 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LPC4333JBD144 is -40°C to +105°C, but this can be limited by the specific application and the PCB design.
  • The clock settings for the LPC4333JBD144 can be configured using the Clock Control Unit (CCU) registers. The CCU provides a flexible clock generation and distribution system that allows the user to configure the clock frequencies and sources for the various peripherals and domains.
  • The maximum current consumption of the LPC4333JBD144 depends on the operating frequency, voltage, and peripheral usage. According to the datasheet, the typical current consumption is around 130 mA at 204 MHz and 3.3 V, but this can increase to around 250 mA with all peripherals enabled.
  • The LPC4333JBD144 has a built-in Ethernet MAC (RMII) interface that can be used to connect to an external PHY chip. The Ethernet interface can be configured using the Ethernet MAC registers and the RMII interface can be connected to an external PHY chip such as the NXP PCA82X series.
  • The LPC4333JBD144 has 536 kB of SRAM and 1 MB of Flash memory. The SRAM is divided into 136 kB of local SRAM and 400 kB of SRAM that can be used as a cache or as additional SRAM.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPC4333JBD144 Overview

Use the download button to access the LPC4333JBD144 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPC43, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
