LPC4357FET256,551 - NXP

LPC4357FET256,551 Details

• Manufacturer Part Number:

  LPC4357FET256,551

• Source Url Status Check Date:

  2013-06-14 00:00:00

• Brand Name:

  NXP Semiconductor

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  BGA

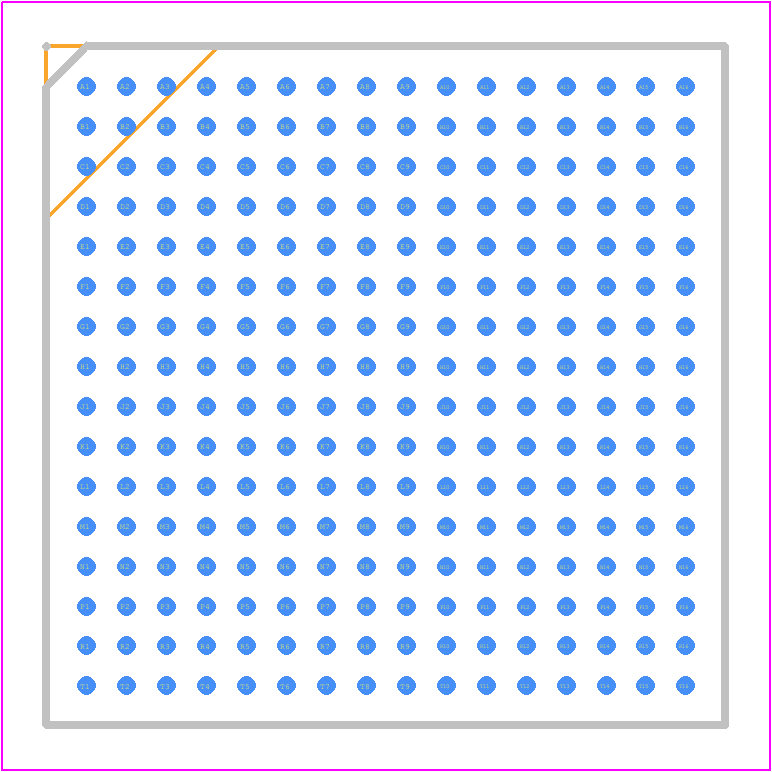

• Package Description:

  17 X 17 MM, 1 MM HEIGHT, PLASTIC, SOT740-2, MO-192, LBGA-256

• Pin Count:

  256

• Manufacturer Package Code:

  SOT740-2

• Country Of Origin:

  Taiwan

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  5

• Has ADC:

  YES

• Address Bus Width:

  24

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  CORTEX-M4

• Clock Frequency-Max:

  25 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• External Data Bus Width:

  32

• JESD-30 Code:

  S-PBGA-B256

• JESD-609 Code:

  e1

• Length:

  17 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  164

• Number of Terminals:

  256

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LBGA

• Package Equivalence Code:

  BGA256,16X16,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  139264

• ROM (words):

  1048576

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.55 mm

• Speed:

  204 MHz

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  17 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
