LPC4367JBD208E - NXP

Description: ARM Microcontrollers - MCU 32-bit ARM Cortex-M4/M0 MCU

Download LPC4367JBD208E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

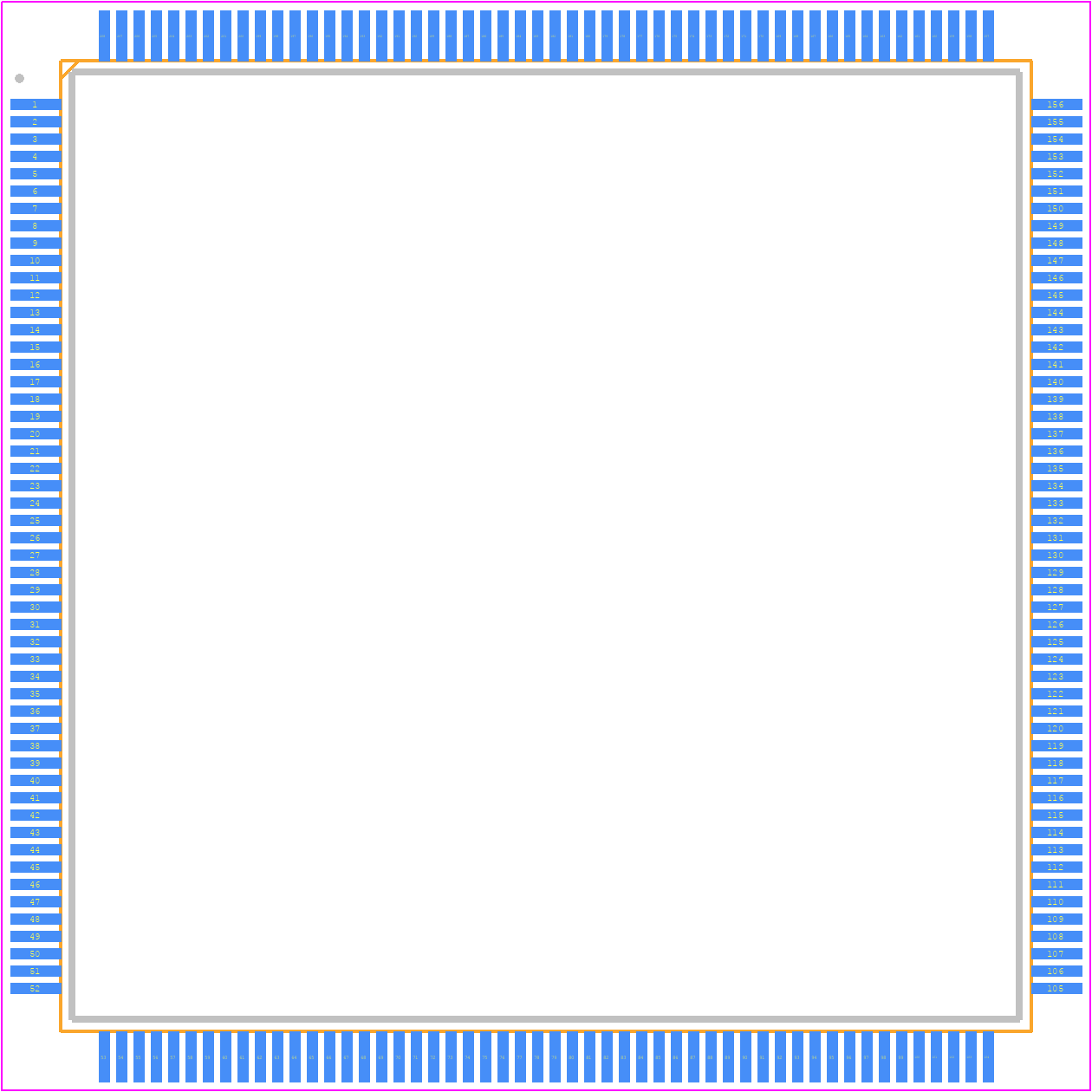

LPC4367JBD208E - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT459-1
click to zoom
3D Models
LPC4367JBD208E - NXP  - 3D model - Quad Flat Packages - SOT459-1
click to zoom

LPC4367JBD208E Details

  • Manufacturer Part Number:

    LPC4367JBD208E

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    208

  • Manufacturer Package Code:

    SOT459-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

LPC4367JBD208E Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LPC4367JBD208E is -40°C to +105°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures.
  • The boot mode for the LPC4367JBD208E can be configured using the BOOTCFG pins (P2[10:9]) and the ISP (In-System Programming) pin (P2[8]). The BOOTCFG pins determine the boot mode (e.g., flash, UART, SPI, or I2C), while the ISP pin enables or disables ISP mode. Consult the datasheet and the LPC43xx user manual for detailed configuration information.
  • The maximum clock frequency for the LPC4367JBD208E is 204 MHz, which can be achieved using the internal PLL (Phase-Locked Loop) or an external clock source. However, the actual clock frequency may vary depending on the specific application and system design.
  • The LPC4367JBD208E has an internal POR and BOD circuitry. The POR ensures that the device resets properly during power-on, while the BOD detects and responds to brown-out conditions. To handle POR and BOD, ensure that the power supply is stable and within the recommended operating range, and use the device's built-in POR and BOD features to detect and respond to power-related events.
  • The LPC4367JBD208E has a USB 2.0 full-speed device interface with a maximum data transfer rate of 12 Mbps. While it supports various USB classes, it does not support USB 3.0 or high-speed modes. Additionally, the device's USB interface may have limitations in terms of power consumption, cable length, and electromagnetic compatibility (EMC). Consult the datasheet and relevant application notes for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPC4367JBD208E Overview

Use the download button to access the LPC4367JBD208E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPC43, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
