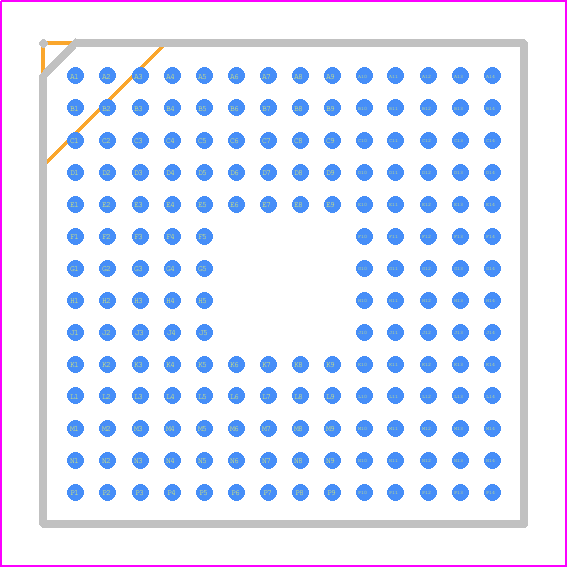

LPC54016JET180 - NXP PCB footprint - BGA - BGA - SOT570-3 (TFBGA180)
click to zoom
3D Models
LPC54016JET180 - NXP - 3D model - BGA - SOT570-3 (TFBGA180)
click to zoom

LPC54016JET180 Details

  • Manufacturer Part Number:

    LPC54016JET180

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA-180

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    2 Days

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    CORTEX-M4

  • Clock Frequency-Max:

    25 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B180

  • Length:

    12 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    32

  • Number of External Interrupts:

    8

  • Number of I/O Lines:

    145

  • Number of Terminals:

    180

  • Number of Timers:

    9

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA180,14X14,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • RAM (bytes):

    368640

  • ROM (words):

    0

  • ROM Programmability:

    OTPROM

  • Seated Height-Max:

    1.2 mm

  • Speed:

    180 MHz

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

LPC54016JET180 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LPC54016JET180 is -40°C to 105°C, as specified in the datasheet. However, it's recommended to operate within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
  • The internal clock source for the LPC54016JET180 can be configured using the Clock Control Unit (CCU) registers. The CCU provides a flexible clock generation and distribution system, allowing you to select from various clock sources, such as the internal RC oscillator, external crystal oscillator, or PLL. Refer to the LPC54016JET180 user manual for detailed configuration instructions.
  • The maximum current consumption of the LPC54016JET180 depends on the operating frequency, voltage, and peripheral usage. According to the datasheet, the typical current consumption at 180 MHz and 3.3V is around 350 mA. However, this value can increase depending on the specific application and usage scenario.
  • The LPC54016JET180 has a 12-bit Analog-to-Digital Converter (ADC) with up to 16 channels. To use the ADC, you need to configure the ADC registers, select the desired channel, and set the conversion mode. You can also use the ADC in burst mode or scan mode for multiple channel conversions. Refer to the LPC54016JET180 user manual for detailed ADC configuration and usage instructions.
  • Yes, the LPC54016JET180 has an External Memory Interface (EMI) that allows you to connect external memory devices, such as SRAM, NOR Flash, or NAND Flash. The EMI supports various memory interfaces, including AHB, APB, and SDRAM. You need to configure the EMI registers and memory controller to use external memory with the LPC54016JET180.
