LPC54101J512UK49Z - NXP

Description: ARM® Cortex®-M4 LPC54100 Microcontroller IC 32-Bit 100MHz 512KB (512K x 8) FLASH 49-WLCSP (3.29x3.29)

Download LPC54101J512UK49Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

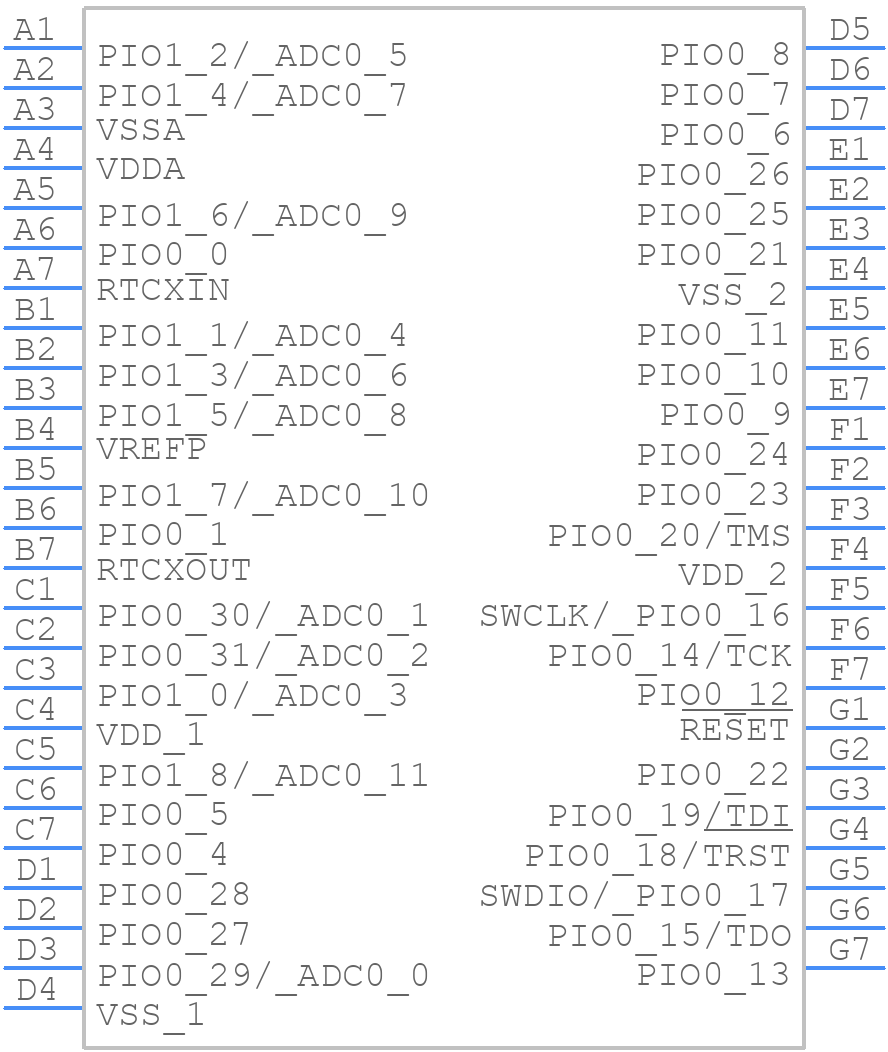

LPC54101J512UK49Z - NXP - PCB symbol
click to zoom
PCB Footprints
LPC54101J512UK49Z - NXP PCB footprint - BGA - BGA - WLCSP49
click to zoom
3D Models
LPC54101J512UK49Z - NXP - 3D model - BGA - WLCSP49
click to zoom

LPC54101J512UK49Z Details

  • Manufacturer Part Number:

    LPC54101J512UK49Z

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-49

  • Manufacturer Package Code:

    OL-LPC5410

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    25 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PBGA-B49

  • Length:

    3.29 mm

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    39

  • Number of Terminals:

    49

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    106496

  • ROM (words):

    524288

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.58 mm

  • Speed:

    100 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.29 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

LPC54101J512UK49Z Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LPC54101J512UK49Z is -40°C to 105°C.
  • The clock settings for the LPC54101J512UK49Z can be configured using the Clock Control Unit (CCU) registers. The CCU provides a flexible clock generation and distribution system that allows the user to configure the clock sources, dividers, and multiplexers to meet the specific requirements of the application.
  • The maximum current consumption of the LPC54101J512UK49Z depends on the operating frequency, voltage, and peripherals used. According to the datasheet, the typical current consumption is around 100 mA at 48 MHz with all peripherals enabled, but this can vary depending on the specific application.
  • The ADC on the LPC54101J512UK49Z is a 12-bit successive approximation register (SAR) ADC with up to 8 channels. To use the ADC, the user needs to configure the ADC clock, select the ADC channel, and start the conversion. The ADC result can then be read from the ADC result register.
  • Yes, the LPC54101J512UK49Z can be used with an external crystal oscillator. The microcontroller has an internal oscillator that can be used as the clock source, but an external crystal oscillator can also be used to provide a more accurate clock signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPC54101J512UK49Z Overview

Use the download button to access the LPC54101J512UK49Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPC54, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
