FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
RAM (bytes):
98304
ROM (words):
262144
ROM Programmability:
FLASH
Seated Height-Max:
1.2 mm
Speed:
96 MHz
Supply Current-Max:
1.375 mA
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
1.8 V
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Technology:
CMOS
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER, RISC
LPC5506JBD64K Frequently Asked Questions (FAQs)
The maximum operating temperature range for the LPC5506JBD64K is -40°C to 105°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at higher temperatures, so it's recommended to operate within a temperature range of -20°C to 85°C for optimal performance.
The LPC5506JBD64K has a complex clock system, and configuring it requires a good understanding of the clock domains, clock sources, and clock dividers. It's recommended to refer to the LPC5506 user manual and the clock configuration chapter in the datasheet for a detailed explanation. Additionally, NXP provides a clock configuration tool that can help simplify the process.
The maximum current consumption of the LPC5506JBD64K depends on the operating frequency, voltage, and peripherals used. According to the datasheet, the maximum current consumption is around 350 mA at 100 MHz and 3.3V. However, this value can be reduced by optimizing the clock frequency, voltage, and peripheral usage. It's recommended to perform power consumption analysis using tools like NXP's Power Estimator or to measure the current consumption using a multimeter.
The LPC5506JBD64K has a built-in secure boot feature that ensures the authenticity and integrity of the firmware. To implement secure boot, you need to generate a secure boot key, create a secure boot image, and configure the boot pins. NXP provides a secure boot guide and a secure boot tool that can help you through the process. Additionally, you may need to consult with NXP's security experts for customized secure boot solutions.
The LPC5506JBD64K's ADC has some limitations, such as a maximum sampling rate of 1.2 Msps, a limited number of channels (12), and a restricted input range (0-3.3V). Additionally, the ADC's accuracy and noise performance may be affected by factors like temperature, voltage, and layout. It's essential to carefully evaluate the ADC's performance and limitations before designing your application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LPC5506JBD64K Overview

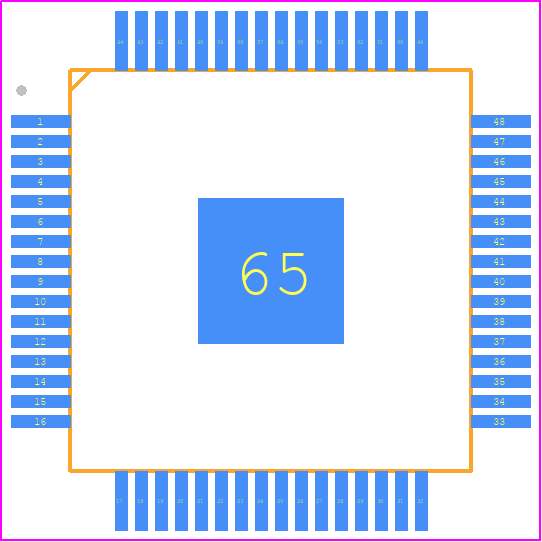

Use the download button to access the LPC5506JBD64K schematic symbol, PCB footprint, and 3D model.
