LPC5516JBD64K - NXP

Description: ARM Microcontrollers - MCU High Efficiency Arm Cortex-M33-based Microcontroller

Download LPC5516JBD64K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LPC5516JBD64K - NXP - PCB symbol
click to zoom
PCB Footprints

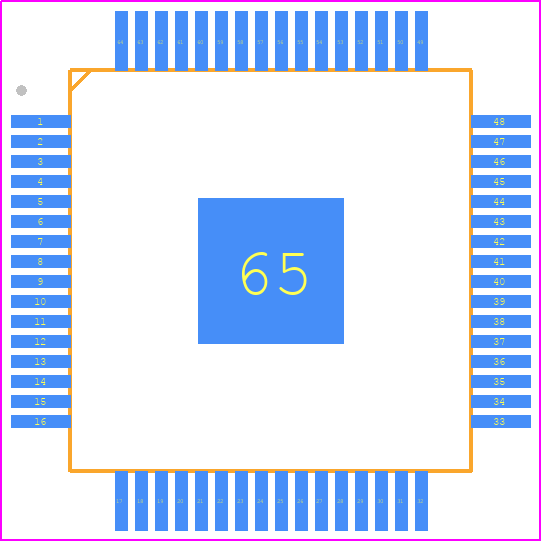

LPC5516JBD64K - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - HTQFP64_2022
click to zoom
3D Models
LPC5516JBD64K - NXP - 3D model - Quad Flat Packages - HTQFP64_2022
click to zoom

LPC5516JBD64K Details

  • Manufacturer Part Number:

    LPC5516JBD64K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2020-03-03

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    CORTEX-M33

  • Clock Frequency-Max:

    32 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    36

  • Number of Terminals:

    64

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    98304

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Speed:

    150 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

LPC5516JBD64K Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LPC5516JBD64K is -40°C to 105°C.
  • The clock settings for the LPC5516JBD64K can be configured using the Clock Control Unit (CCU) registers. The CCU provides a flexible clock generation and distribution system that allows the user to configure the clock frequencies and sources for the various peripherals and domains.
  • The maximum current consumption of the LPC5516JBD64K depends on the operating frequency, voltage, and peripheral usage. According to the datasheet, the maximum current consumption is approximately 350 mA at 100 MHz and 3.3 V.
  • The LPC5516JBD64K has a built-in TrustZone security feature that provides a secure environment for executing sensitive code and storing sensitive data. To use TrustZone, you need to configure the Secure and Non-Secure domains, and use the TrustZone Management Unit (TZMU) to control access to secure resources.
  • Yes, the LPC5516JBD64K can be used with an external crystal oscillator. The microcontroller has an on-chip oscillator that can be used as a clock source, but it can also be driven by an external crystal oscillator for higher accuracy and stability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPC5516JBD64K Overview

Use the download button to access the LPC5516JBD64K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPC55, or try a keyword search, such as Microcontrollers
