LPC55S04JHI48QL - NXP

Description: ARM® Cortex®-M33 LPC55S0x Microcontroller IC 32-Bit 96MHz 128KB (128K x 8) FLASH 48-HVQFN (7x7)

Download LPC55S04JHI48QL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

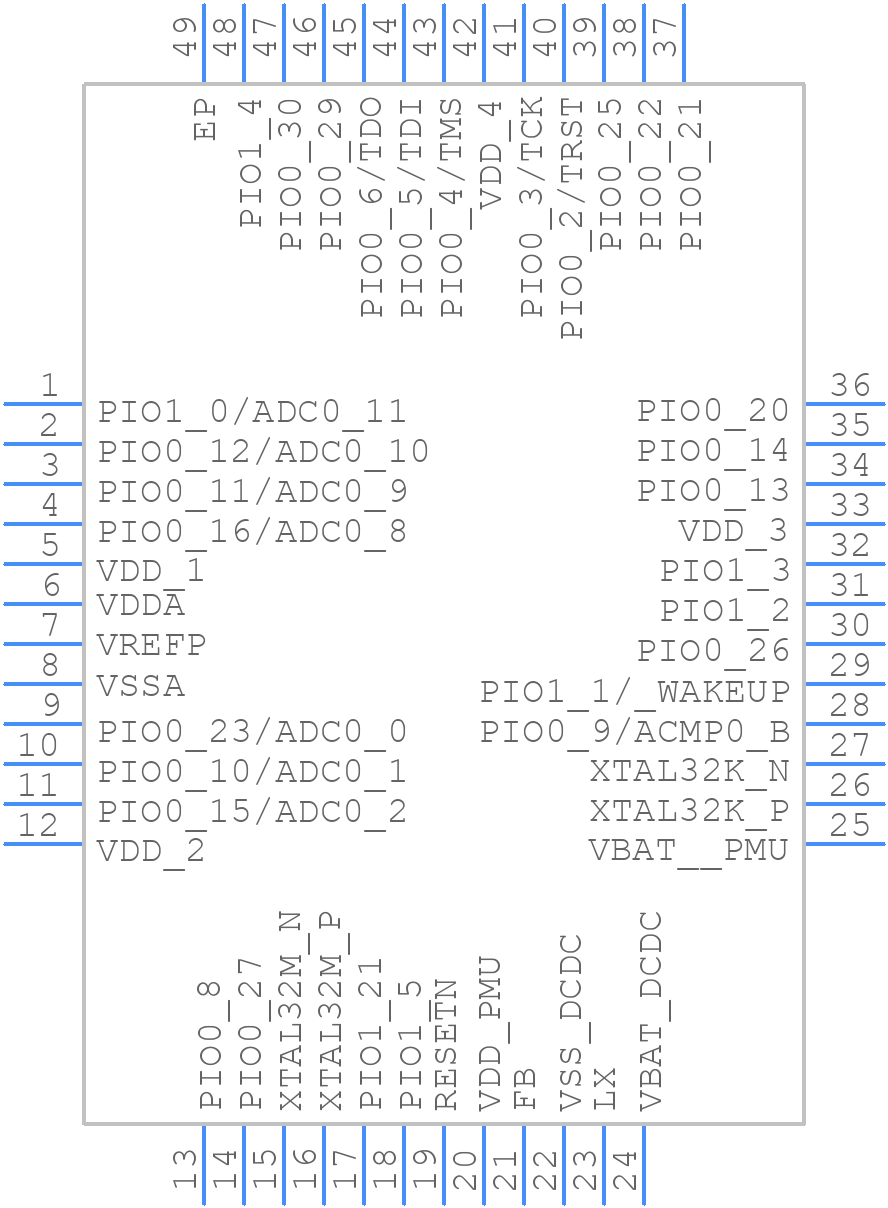

LPC55S04JHI48QL - NXP - PCB symbol
click to zoom
PCB Footprints
LPC55S04JHI48QL - NXP PCB footprint - Other - Other - HVQFN48_2026
click to zoom
3D Models
LPC55S04JHI48QL - NXP - 3D model - Other - HVQFN48_2026
click to zoom

LPC55S04JHI48QL Details

  • Manufacturer Part Number:

    LPC55S04JHI48QL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC
