LPC804M111JDH24 - NXP

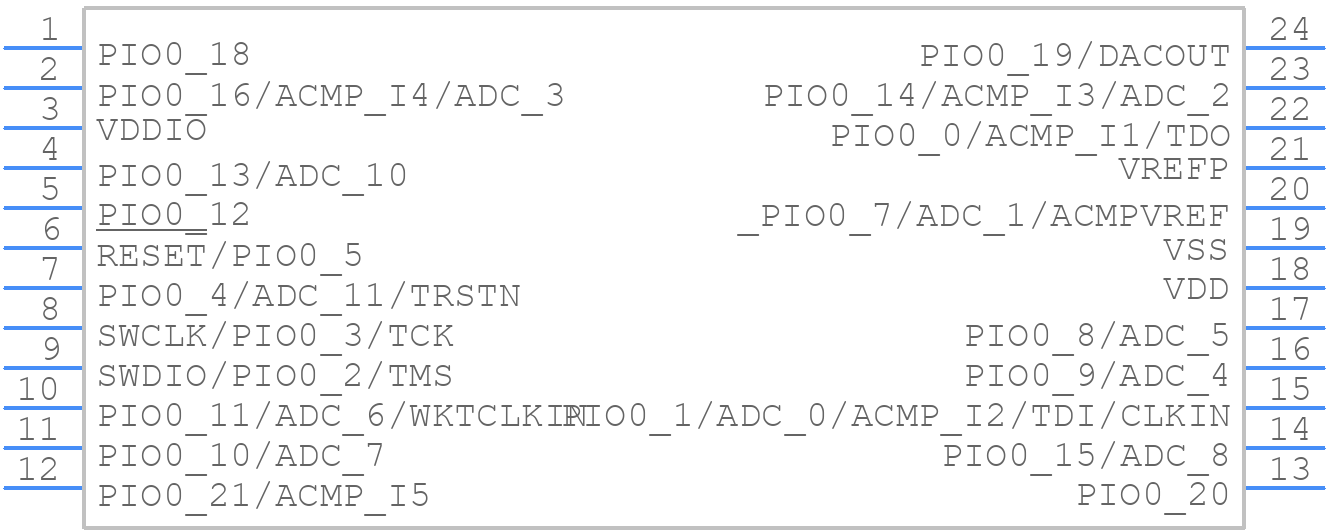

LPC804M111JDH24 Details

• Manufacturer Part Number:

  LPC804M111JDH24

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  TSSOP-24

• Country Of Origin:

  Thailand

• HTS Code:

  8542.31.00.25

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  8

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  Cortex-M0+

• Clock Frequency-Max:

  15 MHz

• DAC Channels:

  YES

• DMA Channels:

  NO

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PDSO-G24

• Length:

  7.8 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of External Interrupts:

  8

• Number of I/O Lines:

  20

• Number of Serial I/Os:

  2

• Number of Terminals:

  24

• Number of Timers:

  7

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP24,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• RAM (bytes):

  4096

• ROM (words):

  32768

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.1 mm

• Speed:

  15 MHz

• Supply Current-Max:

  1.3 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  1.71 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
